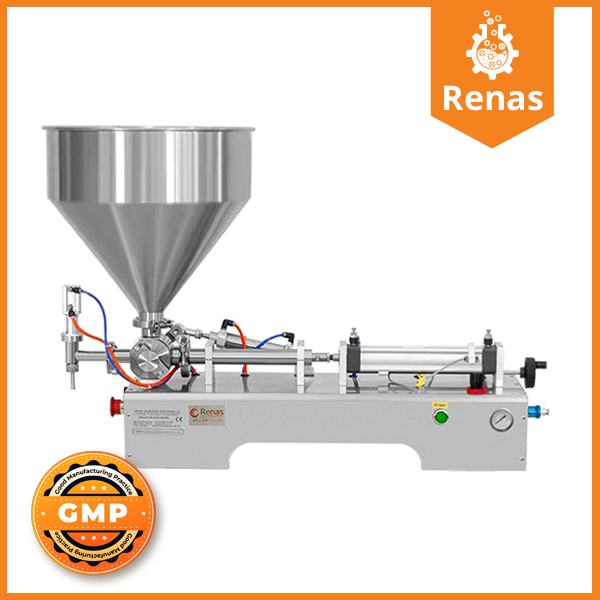

CYD-Y Series Single Nozzle Liquid Filling Machine

CYD-Y Series Single Nozzle Condensed Liquid Filling Machine

Techinical Features and Prices

Features / Series CYD-Y100 CYD-Y1000 CYD-Y1500
Price
1.460,00$
1.780,00$
1.820,00$
Working Range
10 - 100ml
10 - 1000ml
200 - 1500ml
Capasity
5-20 units Filling/Minute
10 - 30 units Filling/Minute
10 - 30 units Filling/Minute
Filling Sensitivity
±%1
±%1
±%1
Input Voltage
220V AC
220V AC
220V AC
Power consumption
0,5 kW
10W
10W
Air pressure
0,4 - 0,6 MPa (4 - 6 Bar)
0,4 - 0,6 MPa (4 - 6 Bar)
0,4 - 0,6 MPa (4 - 6 Bar)
Dimensions
115 * 49,5 * 44 cm
115 * 49,5 * 44 cm
115 * 49,5 * 46 cm
Weight
21KG
27KG
30KG
Way of Working
Pedal or Automatic
Pedal or Automatic
Pedal or Automatic
Material
Stainless steel
Stainless steel
Stainless steel
Energy
220V / 50HZ
220V / 50HZ
220V / 50HZ
Suction Pipe
304 Stainless
304 Stainless
304 Stainless
Suction Pneumatic Cylinder
DNC Type Bold, Honed Tip
DNC Type Bold, Honed Tip
DNC Type Bold, Honed Tip
Nozzle Pneumatic Cylinder
Less Risk of Pen Piston Missing
Less Risk of Pen Piston Missing
Less Risk of Pen Piston Missing
Chassis
Certified 304
Certified 304
Certified 304
Sensors
Mindman Made in China
Airtac Made in China
Mindman Made in China

Products That Can Be Filled

CYD-Y Series Single Nozzle Condensed Liquid Filling Machine

Honey

CYD-Y Series Single Nozzle Condensed Liquid Filling Machine

Molasses

CYD-Y Series Single Nozzle Condensed Liquid Filling Machine

Jam

CYD-Y Series Single Nozzle Condensed Liquid Filling Machine

Shampoo

CYD-Y Series Single Nozzle Condensed Liquid Filling Machine

Tahini

CYD-Y Series Single Nozzle Condensed Liquid Filling Machine

Cream

CYD-Y Series Single Nozzle Condensed Liquid Filling Machine

Hair Lotion

CYD-Y Series Single Nozzle Condensed Liquid Filling Machine

Tomato Paste

CYD-Y Series Single Nozzle Condensed Liquid Filling Machine

Yogurt

CYD-Y Series Single Nozzle Condensed Liquid Filling Machine

Mustard Sauce

Refillable Bottle Types

CYD-Y Series Single Nozzle Condensed Liquid Filling Machine

Cream Pots

CYD-Y Series Single Nozzle Condensed Liquid Filling Machine

Glass Jar

CYD-Y Series Single Nozzle Condensed Liquid Filling Machine

Lotion and Shampoo Bottles

CYD-Y Series Single Nozzle Condensed Liquid Filling Machine

Plastic Bucket

CYD-Y Series Single Nozzle Condensed Liquid Filling Machine

Plastic Sauce Bottle

CYD-Y Series Single Nozzle Liquid Filling Machine Features

  • It can fill all low and medium viscosity products from 10ml to 5000ml.
  • Compared to the old methods, it provides a more professional liquid filling environment.
  • All materials such as gaskets and felts at the points in contact with the product during liquid filling are produced from anti-bacterial silicone material. Thus, you establish a system that meets the hygiene requirements (GMP requirements).
  • The production of materials such as all gaskets and felts at the points that come into contact with the product during liquid filling are made of anti-bacterial silicone material. Thus, you establish a system that meets the hygiene requirements (GMP requirements).
  • Thanks to its precision dosing arm with 0.5 mm pitch, it allows to work with a single machine with minimum deviation rate in many filling intervals. As long as the dosing setting is not changed, it continues to work at the same rate.
  • The emergency button of the semi-automatic single nozzle Condensed liquid filling machine of CYD-Y Series products allows to bring the machine to a safe position in case of emergency, regardless of the position of the machine. In this way, you will have a production method in accordance with the occupational safety law numbered 6331. It does not require extra costs to bring it into compliance with the law in question.
  • The dense liquid filling machine has a precision dosing arm with 0.5 line intervals. Thanks to its sensitive dosing arm, it works with minimum deviation during liquid filling processes. As long as there is no change in the dosing settings, it always continues to work at the same rate.
  • CYD-Y Series products are semi-automatic. Depending on your production style and quantity, it can be operated in automatic and manual modes. In order for it to work in manual mode, a pedal switch is sent free of charge with the machine.
  • CYD-Y Series products Nozzle system has an anti-drip system. In this way, you will not have any dripping problems after the filling is completed. As a result, your bottles you fill are not contaminated, and you will not experience weight loss due to drips.
  • CYD-Y dense liquid filling machines have an anti-bacterial stock bunker system with increased strength and easy to clean. Thanks to the stock hopper, the machine can be cleaned in a short time after the liquid filling processes are completed.
  • CYD-Y Series products have a honed product suction piston, unlike other similar products. This piston serves to dosing with high precision even in heavy weights and to minimize filling wastage. On the other hand, since the piston surface is smooth, piston seals have a longer life compared to their counterparts.
  • The internal conditioner in the CYD-Y Series Machine system provides protection against factors such as water and rust that may occur in the air installation and damage the pneumatic system of the machine. Thanks to the slide valve at the air inlet of the machine, you can cut off the air from the system when you are finished with the machine, without the need for a different valve.
  • Many liquids can be filled with the CYD-Y Series Dense liquid filling machine. Among the liquid types in question; honey, molasses, pomegranate syrup, jam, shampoo, tahini, cream, hair lotion, tomato paste, acuka, garlic sauces, yogurt, thick paints, car polish, ketchup, mayonnaise, mustard sauce, juice, water, turnip, liquid soap, There are many liquids such as milk, oil, mineral oil, syrup.



CYD-Y Series Single Nozzle Liquid Filling Machine Optional Features

In addition to the features of the CYD-Y Series Dense liquid filling machine and the Single nozzle Condensed liquid filling machine, you can add different features you need to the machine. The main ones of these optional features are as follows;

  • Optionally, the points in contact with the product can be produced from a different material. It can be produced in accordance with product fillings that require high heat.
  • A mixer working at different speeds or adjustable speed can be made.
  • The sensor of the machine can be developed as triggered.
  • It can be produced as heated, double-walled or single-walled for products that must always remain warm.
  • It can be produced in accordance with the situations where you need to work at different voltages.
  • Optionally, mechanical position inductor counter can be added. These features and options are subject to charge.
  • The filling nozzles in the filling nozzles can be produced in different sizes according to the needs.
  • The delivery time of the machines for which additional (optional) features are requested varies between 5-20 days.
  • It is packaged in accordance with long-distance cargo shipments.
  • Thanks to the courier company we have contracted with, the product is transported at an affordable price. If your company already has a contracted cargo company, you can choose to use that cargo as well.
  • 1 year warranty is provided against manufacturing defects.
