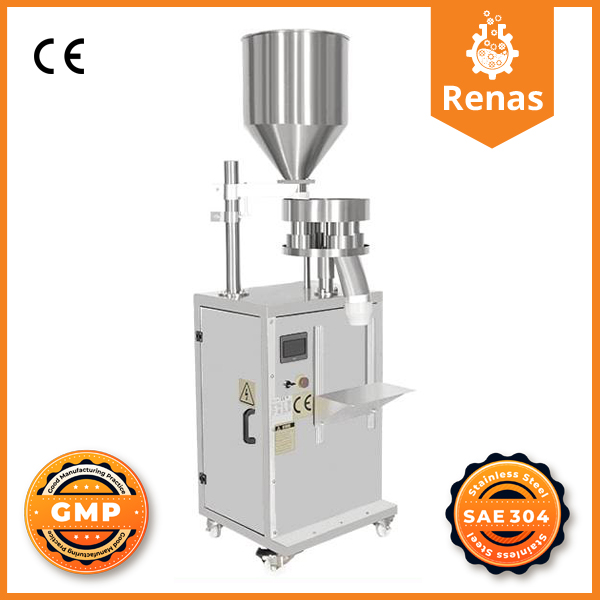

RYD-G100 Semi Automatic Granule Filling Machine

RYD-G Granular Product Filling Machine

Products That Can Be Filled

RYD-G Granular Filling Machine


RYD-G Granular Filling Machine


Semi Automatic Granule Filling Machine Featurs

  • These machines, which have an ergonomic design, take up very little space and help you work with high efficiency. It can go up to the production level of 5000-6000 per day.
  • Our machines can also successfully fill all granule form and powder products with high fluidity.
  • With the RYD-G100 semi-automatic granular product filling machine, in crystal products such as granulated sugar and salt; in legumes such as beans, lentils and chickpeas; nuts, peanuts, peanuts with sauce, etc. It can fill in dried nut varieties and liquidy powder, flake, granular spice varieties without any problems.
  • All of the points in contact with the product are made of SUS 304 stainless steel material. In this respect, it offers a working environment in accordance with GMP and FDA food norms.
  • All automation and electrical infrastructure has been designed in accordance with the occupational safety law. There is grounding in the machine body. In addition, since all automation parts used in the machine work as 24 and 68V, it is a very safe machine against the danger of electric shock.
  • Measuring cups can be produced in different sizes from polyethylene, stainless steel or a different material suitable for your needs.
  • It is a PLC controlled granule filling machine. You can make all the settings related to filling and operation from the easy-to-use touch operator panel. Our machine is equipped with much more superior features than similar machines. For example; You can set the number of rounds tab in the easy-to-use menu to empty the measuring cup for each package. In addition, you can adjust the speed of the turntable according to the fluency of your product from the rotation speed tab in the easy-to-use menu. You can also set where to start and where to finish filling from the measuring cup position adjustment buttons at the bottom of the easy-to-use menu. Finally, you can see how many pieces you have produced with the piece counter in the easy-to-use menu; You can reset it from the reset button on the side whenever you want.
  • RYD-G100 semi-automatic granular product filling machine basically has two different working modes. You can operate it with the pedal or in automatic mode.
  • The disc where the measuring cups are located is controlled by the geared stepper motor located inside our machine. For this reason, the sensitivity in filling is extremely high.
  • It is 100% domestic production. All parts and movement group of the machine are Turkish made.
  • Thanks to the height adjustment of the filling tray in the machine, it can fill up to 40% more weight than the lowest level of the measuring cups you have made. For example, you can fill up to 140 grams in different weights by adjusting the height of the filling tray with a measuring cup that takes 100 grams of your product. In addition, you can fill the weights on the upper floors of the measuring cup you have made, without having a new measuring cup made. For example; With a 100 gr measuring cup, you can fill 300 gr by making 3 the number of rounds in the easy-to-use menu.
  • Thanks to the height adjustment on the filling support shelf of the RYD-G100 semi-automatic granular product filling machine, you can make it suitable for the height of your packaging by loosening only 4 screws.
  • The stock bunker holds approximately 45 liters of product. If you want to reduce your labor for the products you work with in high weights, you can support our machine with feeding spirals, transport conveyors and elevators, which can be controlled from the operator panel and filled automatically when the bunker is low, which are also produced by our company and sold at extremely affordable prices. It is an extremely quiet machine. In this respect, it is a very useful machine especially for workshops that produce in the city and under the apartment.
  • It works with high precision and low wastage thanks to silicon scrapers.
  • If you use our machine together with FRD series machines, especially when you fill bags, you can reach a capacity close to the speed of automatic packaging machines. Thanks to these two, you will not have to have a costly different collar for every product you experience in packaging machines.

Semi Automatic Granule Filling Machine Optional Features

In addition to the features of the RYD-G100 granular product filling machine, you can add different features you need to the machine. The main optional features in question are as follows:

  • According to the needs, different types of materials can be added to the points in contact with the product.
  • It can be produced in accordance with the situations where you need to work at different voltages.
  • Measuring cups can be produced in different sizes from polyethylene, stainless steel or a different material suitable for your needs.
  • If you wish, the discharge mouth can be produced in different sizes to enter your packaging.
  • You can add the optional mixer option in our machine for products that flow from the measuring cups with the machine but not from the stock hopper.

Semi Automatic Granule Filling Machine Other Details

  • The delivery time of the machines for which additional (optional) features are requested is in the range of 5-20 days.
  • It is packaged to be suitable for long-distance cargoes.
  • Thanks to the contracted courier company, the product is transported at an advantageous price. If your company has a contracted cargo company, you can choose to use that cargo as well.
  • It is a product with a 1-year warranty against factory-made faults.
