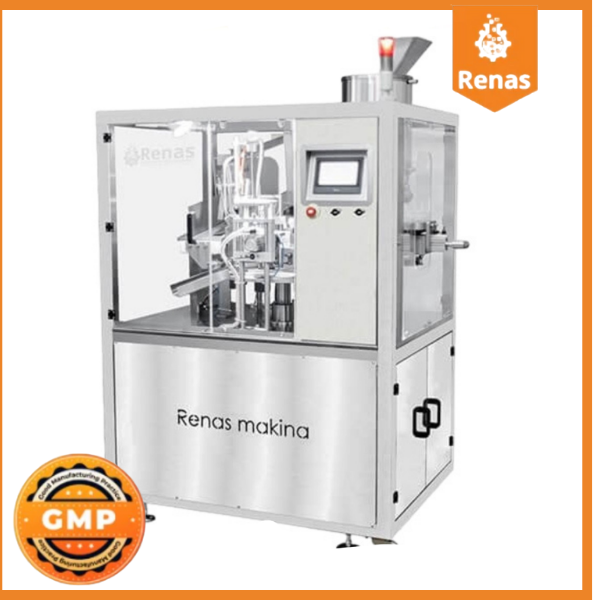

ROD-K400M Fully Automatic Industrial Metal Tube Filling and Sealing Machine

ROD-K400M Fully Automatic Industrial Metal Tube Filling and Sealing Machine

Technical Specifications of the ROD-K400M Fully Automatic Metal Tube Filling and Sealing Machine

Model ROD-K400M
Weight 530 kg
Power Consumption 5 kW
Operating Voltage 220V 50Hz
Air Consumption 50 L/Minute
Air Pressure 6 bar Min – 8 bar Max
Control System PLC + HMI Operator Panel
Origin Turkey
Filling Range According to your needs
Photoelectric Sensor SICK Spot Sensor
Dimensions 1000 x 1300 x 1700 mm (Width x Depth x Height)
Product Hopper Volume 40 L
Capacity 30 units/minute

General Features of ROD-K400M Fully Automatic Metal Tube Filling and Sealing Machine

  • The ROD-K400M fully automatic metal tube filling and sealing machine is designed to assist in filling products such as creams, skincare products, molasses, and jams.
  • The industrial ROD-K400M metal tube filling machine has a weight of 530 kg and a product hopper capacity of 40 L.
  • The ROD-K400M filling and sealing machine performs 30 fillings per minute, enabling fast production for businesses.
  • The capacity of the fully automatic industrial metal tube filling machine is designed according to specific needs.
  • The industrial ROD-K400M features an ergonomic design and operates quietly.
  • The fully automatic metal tube filling machine is 100% locally produced, ensuring easy access to spare parts.
  • All parts in contact with the products are made entirely of stainless steel. It is both environmentally friendly and user-friendly.
  • The fully automatic sealing machine is equipped with safety systems, a fully grounded body, and is secure against electrical leaks.

ROD-K300U - Cream Tube Filling and Sealing Machine Working Principle

  • ROD-K400M fully automatic metal tube filling and sealing machine has a 1-year warranty against factory defects.
  • The machine is shipped at reasonable costs with the cargo company we have an agreement with. We also ship with different cargo companies according to your preference.
  • When additional features are requested for the ROD-K400M filling machine, the delivery time is between 5-20 days.
  • The filling and capping machine is specially packaged for long distances.
