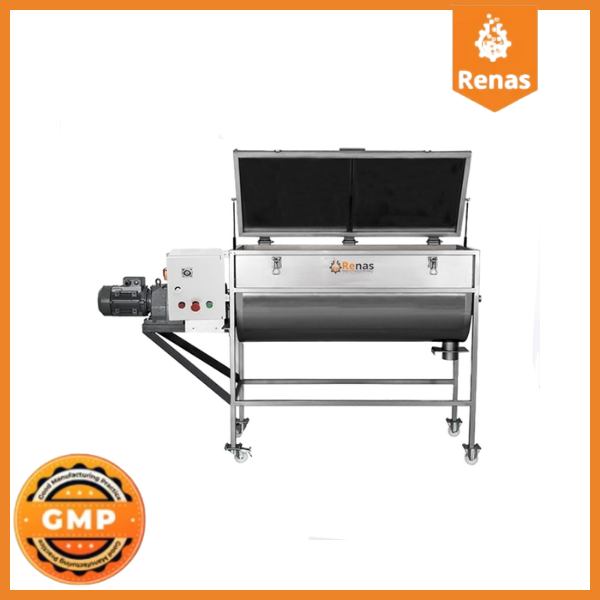

RMX-U5 - Ribbon Granule and Powder Mixer - 1000 Liters

RMX-U5 - Ribbon Granule and Powder Mixer - 1000 Liters

General Features of RMX-U5 - 1000 Liter Granule and Powder Mixer

  1. RMX-U5 U ribbon type mixer is capable of mixing powder-to-powder, powder-to-granule, granule-to-granule, and humidity conditioning mixtures.
  2. Many modules can be added during and after production, providing economical, practical, and smart solutions for mixing processes.
  3. RMX-U5 horizontal mixer features a three-way helix system. This system allows the product being mixed to be drawn in three directions simultaneously, creating perfectly homogeneous mixtures. The mixing time is significantly shorter compared to similar mixers, which increases production performance.
  4. It is 100% locally manufactured. All parts of the machine are produced by Renas Makina, and the transmission and motor groups are sourced from other local manufacturers.
  5. The 1000-liter RMX-U5 horizontal powder mixer is made of SUS 304 stainless steel. Upon request, it can also be produced using DKP sheet or SUS 316 stainless steel.
  6. RMX-U5 U series ribbon mixers are available in three different sizes, each with a different volume capacity. You can choose the one that suits your needs and production capacity.
  7. The mixer’s filling covers are equipped with stop-switch safety devices, providing a safe working environment.
  8. The mixer has a fully grounded body structure.
  9. The mixer has a mechanism for changing the direction of the mixture.
  10. RMX-U5 U series granule and powder mixers include a start-stop control panel to manage operation.
  11. The machine is equipped with lockable wheels for easy relocation.
  12. With its ergonomic design, the machine is easy to clean and maintain.
  13. The machine has a capacity of 1000 liters.

Optional Features That Can Be Added to RMX-U5 - 1000 Liter Granule and Powder Mixer

  • Optionally, a pneumatically controlled automatic discharge cover can be added. This feature allows finished products to be integrated with packaging or filling lines. You can also ensure that the discharge cover remains open continuously or for a specified duration.
  • Optionally, a pneumatically controlled automatic filling cover can be added. This feature allows integration with fully automated feeding systems and ensures that the product feeding cover automatically opens.
  • A timer can optionally be added. This feature allows the mixing time to be programmed, enabling you to set the duration for which the mixing process will be carried out.
  • Loadcell weighing feature with 1, 2, 3, or 5 outputs can be added to the machine as an option. This feature allows automatic feeding of different product types at preset weights.
  • Two separate filling covers can optionally be added. This feature allows part of the product feeding cover to be fixed, part movable, or both sections to be movable.
  • If requested, humidification nozzles can be added to the RMX-U3 ribbon type granule and powder mixer. This feature allows the moisture level of the mixture to be increased.
  • A fully automated dosed humidification system can optionally be added. This feature allows the integration of a liquid tank into the machine, enabling you to add as much moisture or liquid active ingredient to the mixture as needed.
  • If requested, loadcell-based PLC and touch screen-controlled mixing automation can be added. This feature allows you to create recipes for mixtures and automatically fill them with the prescribed amounts from product silos. Additionally, you can set the mixing time, and once completed, the product can be automatically discharged.
  • With the 220 V input for low torque and 380 V input for high torque, you can set the mixing speed of the machine. This feature is especially useful for workshops that do not require high power, such as small-scale manufacturing operations.

RMX-U5 - U Type Mixer - 1000 Liters - Other Details

  • The delivery time for machines with optional features requested is between 5 to 20 days.
  • The products are packaged in a way suitable for long-distance shipping.
  • Thanks to our agreement with a shipping company, the transportation of the product is done at a reasonable price. If your company has an agreement with another shipping company, you may choose to use that service instead.
  • A 1-year warranty is provided against factory defects.
