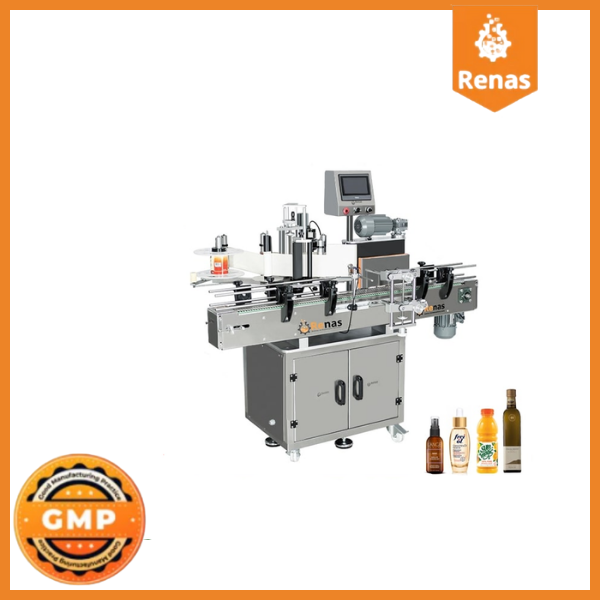

REM-C4 Fully Automatic Bottle Labeling Machine

REM-C4 Fully Automatic Bottle Labeling Machine

Technical Specifications of REM-C4 Bottle Labeling Machine

Model REM-C4
Outer Diameter 18-100 mm
Label Length 20-200 mm
Max Outer Diameter of Label Roll 300 mm
Inner Diameter 76 mm
Voltage 220 V +/- 5V, 110 V +/- 5V
Power 1 kW
Air Pressure 0.4-0.6 mpa / 4-6 bar
Labeling Speed 10-40 bottles/min (Varies with Diameter)

General Features of REM-C4 Fully Automatic Bottle Labeling Machine

  1. The REM-C4 fully automatic bottle labeling machine has been developed to perform precise labeling processes without any problems.
  2. You can label many different packages such as bottles, jars, and cans by adjusting the machine settings within minutes.
  3. It has 15 different open and position settings. The adjustment sections are highly user-friendly, making it an easy-to-use labeling machine.
  4. It is suitable for products ranging from 80 ml to 2000 ml.
  5. The REM-C4 fully automatic bottle labeling machine is equipped with a servo system step motor drive group and fiber sensors. This allows our machine to always position the label at the same precise point, ensuring consistent labeling with the same standard quality.
  6. One of the key features of the REM-C4 fully automatic bottle labeling machine is the wrapping system, which we offer as standard, consisting of elastomer sponge and polymer wrapping conveyor. This system ensures that labels requiring full wrapping are positioned with millimetric precision, preventing crooked or misaligned labels. Additionally, the inductive motor that drives the wrapping conveyor, like all other conveyor groups, has a speed adjustment feature.
  7. The REM-C4 fully automatic bottle labeling machine uses our own design for the label dispensing module. The control of the label dispensing module is fully managed by the PLC on the main control panel. This ensures that the entire system operates in harmony, and all settings of the label dispensing module can be made from the touch-operated control panel with an easy-to-use menu.
  8. The machine’s control menu is highly functional. From the touch-operated control panel with an easy-to-use interface, you can manually operate units like wrapping and label dispensing and quickly make the necessary physical adjustments for your package. Additionally, using the manual labeling feature accessible from the manual operation menu, you can place the label in the flow path and apply it with the touch of a button without removing any parts.

Other Details About REM-C4 Fully Automatic Bottle Labeling Machine

  • The delivery time for machines with additional (optional) features requested is between 5-20 days.
  • The machine is packaged to be suitable for long-distance shipping.
  • The shipping process is carried out at a discounted price thanks to the courier company we have an agreement with. If your company has a preferred courier service, we can also use that option.
  • The product comes with a 1-year warranty against factory defects.
