REM-C Cylindrical Labeling Machines

REM-C Cylindrical Labeling Machines

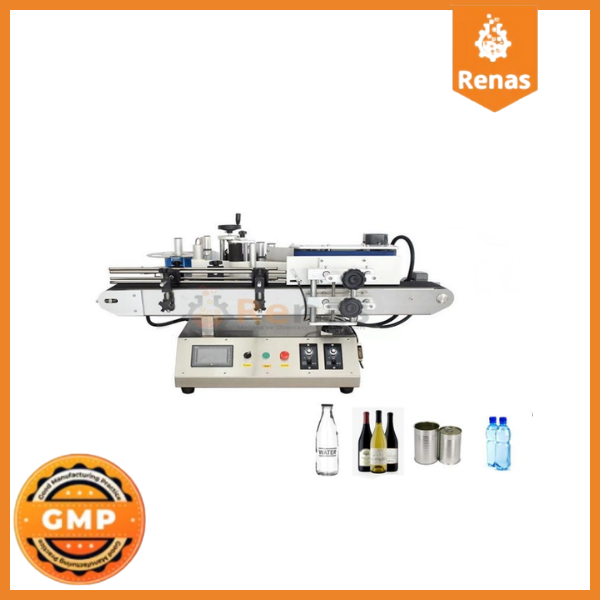

Fully Automatic Bottle Labeling Machine - REM-C1 Technical Specifications

Model REM-C1
Outer Diameter 18-100 mm
Label Length 20-150 mm
Max Outer Diameter of Label Roll 300 mm
Inner Diameter 76 mm
Voltage 220 V +/- 5V, 110 V +/- 5V
Power 1 kW
Labeling Speed 10-25 bottles/min (Varies according to diameter)

General Features of REM-C1 Fully Automatic Bottle Labeling Machine

  1. REM-C1 fully automatic bottle labeling machine is developed to perform precise labeling processes without any problems.
  2. You can label many different packages such as bottles, jars, and cans with one machine, changing settings within minutes.
  3. It has 5 different open and position settings. The adjustment sections make it an extremely user-friendly labeling machine.
  4. It is suitable for working with products between 80 ml and 1000 ml bottles.
  5. The REM-C1 fully automatic bottle labeling machine has a sensor group consisting of a servo system step motor drive group and fiber sensors. This allows our machine to always precisely position the label at the same point, ensuring standard and consistent labeling.
  6. One of the biggest features of the REM-C1 fully automatic bottle labeling machine is the wiping system, which we offer as standard, consisting of an elastomer sponge and a polymer coating conveyor. It prevents diagonal or crooked sticking of the label by making minimetric positioning, especially for labels requiring full wrap. Additionally, the inductive motor driving the wiping conveyor has speed adjustment like all other conveyor groups.
  7. The REM-C1 fully automatic bottle labeling machine uses our own designed label dispensing module. The control of the label dispensing module is completely managed by the PLC located in the main control panel. Thanks to this feature, the entire system works harmoniously together, and all settings of the label dispensing module can be made from the user-friendly, touch-screen operator panel.
  8. The machine’s operation menu is highly functional. Through the manual operation menu, accessible via the user-friendly touch-screen operator panel, you can manually operate units such as wiping, label dispensing, etc., and quickly make the necessary physical adjustments according to your packaging. Additionally, the manual label feeding feature, accessible from the manual operation menu, allows you to place the label in the flow path and attach it by simply pressing a button on the screen, without removing any parts.

Other Details About REM-C1 Fully Automatic Bottle Labeling Machine

  • The delivery time for machines with requested optional features ranges between 5-20 days.
  • Packaged in a way suitable for long-distance shipping.
  • Thanks to our partnered shipping company, the product’s transport is done at a favorable price. If your company has a contracted shipping company, you can choose to use that service as well.
  • The product is guaranteed for 1 year against factory defects.
