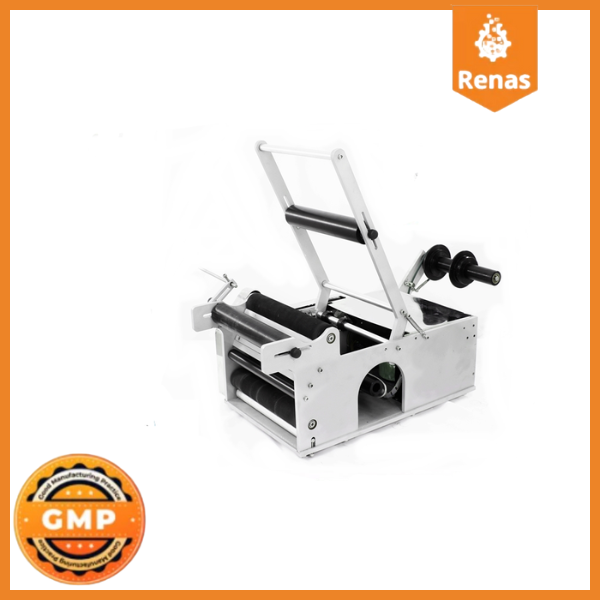

M-75SP - 8-230mm Cylindrical Labeling Machine

M-75SP - 8-230mm Cylindrical Labeling Machine

Technical Specifications of M-75SP - 8-230mm Labeling Machine

Model M-75SP
Precise Labeling Less than ±0.5 mm
Capacity 20 – 25 pieces / minute
Bottle Diameter It Can Work With Up to 245 mm diameter
Label Width 8 – 230mm
Label Length From 20mm to 240mm
Power supply 220V 50Hz
Engine Power 65kw
Date Coding Up to 3 Lines 36 Characters

General Features of M-75SP - 8-230mm Labeling Machine

  1. The machine is controlled via the PLC control unit.
  2. The necessary drive to all moving parts of the machine is provided by the stepper motor.
  3. The wrapping speed of the label can be adjusted.
  4. It can work seamlessly on different label types.
  5. It is suitable for labeling all round and cylindrical products such as glass bottles, pet bottles, glass jars, tins, serrated tins. It also works without any problems in difficult processes such as full winding.
  6. It has been developed to work on all label sizes between 20 mm – 240 mm. It can label all cylindrical objects up to 245 mm in diameter.
  7. It has a date coding feature. In this way, information such as date, batch number, weight can be coded without the need for additional workmanship. The date coding feature can be used up to 3 lines and 36 characters in total.
  8. The M-75SP semi-automatic date coding labeling machine has a fiber optic sensor with smart recognition feature as standard. Thanks to this sensor, labeling processes can be carried out without waste.
  9. Thanks to the smart positioning system, the length of the label starting queue can be easily adjusted before starting the label wrapping process.

Optional Features That Can Be Added to the M-75SP - 8-230mm Labeling Machine

In addition to the features of the M-75SP semi-automatic date coding labeling machine, you can also add other features to the machine as you need. The main optional features in question are as follows:
  • Depending on your needs and demands, the points in contact with the product can be produced from a different material.
  • Optionally, a counter showing labeling information can be added.
  • It can be produced to suit situations where you need to work at different voltages.
  • With the TP option, transparent labels can be easily worked on.
  • Thanks to the SP option, you can personalize the machine according to your many other needs.

M-75SP - Labeling Machine - 8-230mm - Other Related Details

  • The delivery time for machines with additional (optional) features is between 5-20 days.
  • It is packaged appropriately for long distance shipments.
  • Thanks to the cargo company we have an agreement with, the transportation of the product is done at an affordable price. If your company has an agreement with a cargo company, you can also choose to use that cargo.
  • A 1-year warranty is given against factory defects.
