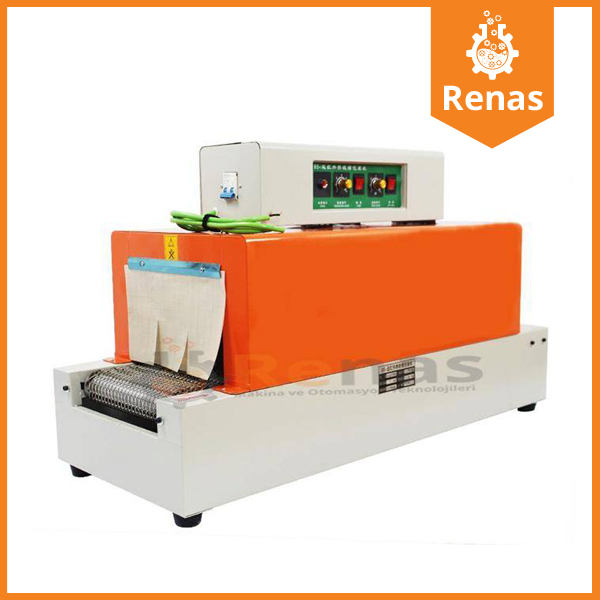

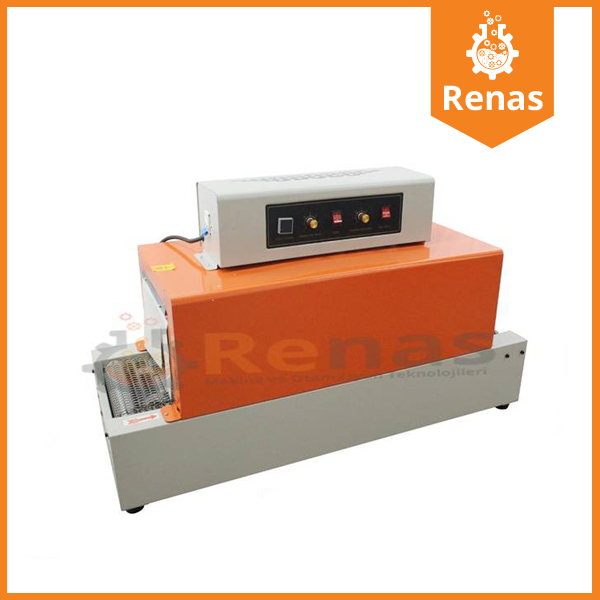

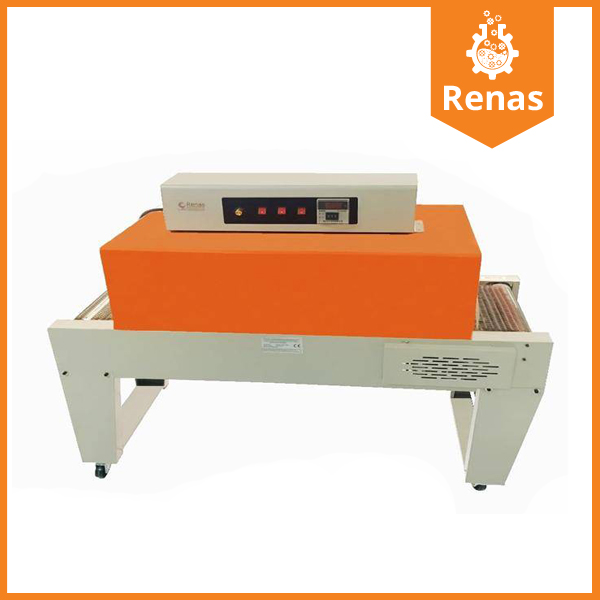

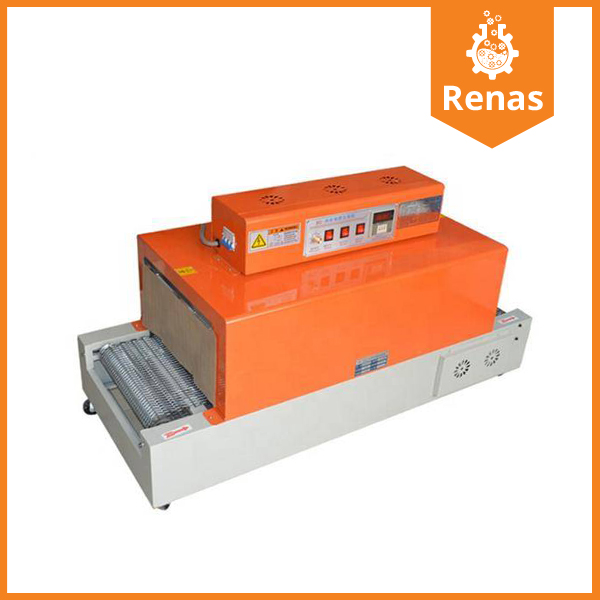

CSH Series Heat Tunnel Shrink Packing Machine

CSH SERIES

Techinical Features and Prices

Features / Series CSH-260M CSH-260T CSH-4020 CSH-M 4020 CSH-4020T
Price
750.00$
785.00$
1.070,00$
920,00$
1.120,00$
Power Supply
110/220v - 50 Hz
110/220v - 50 Hz
110/220v - 50 Hz
110/220v - 50 Hz
110/220v - 50 Hz
Power Consumption
600W
600W
700W
700W
700W
Packaging Sealing Dimensions
15*26 cm
15*26 cm
21*40 cm
21*40 cm
21*40 cm
Bonding Temperature Range
0-300 C
0-300 C
0-300 C
0-300 C
0-300 C
Conveyor Conveying Capacity
5 kg
10 kg
11 kg
11 kg
11 kg

CSH Series Heat Tunnel Shrink Packing Machine General Features

♦ 3-line coding machine for CSH Series heat tunnel shrink packaging machines is a model that can be easily mounted on horizontal and vertical packaging machines and labeling machines.
♦The product can work synchronously with the machine on which it is mounted. For this, it is important that the inductive sensor that comes in the product is mounted on the appropriate moving part of the machine.
♦ In the use of the machine, the date is always printed on the part where the label is set.
♦ It is an affordable shrink machine compared to its equivalents.
♦ It prints the date perfectly with the hot stamping foil ribbon. During thermal transfer, the printing takes 150-200 degrees of heat. The print that lasts up to +80, -30 degrees is not erased. It prints much more smoothly than solvent and ink inkjet prints.
♦ The 3-line coding machine for CSH-4020 heat tunnel shrink packaging machines works without any problems compared to similar products. This machine, which has 11 times cheaper coding modules, is also extremely low in terms of maintenance costs. It is an economical choice.
♦ With the machine, packaging and printing can be done with label types such as nylon films, PE/PP, CPP, triblex, duplex, monoplex, laminated PVC surfaces, self-adhesive label films.
♦ The coding module has a coding capacity of 3 or 4 lines, 10 characters per line.
♦ In our module, all numbers between 0 and 9 are given together with the letters SKT, URT, PRT. Date changes are extremely easy. In addition, you can obtain letters such as GR, KG, TL and other alphabet letters from us.

CSH Series Heat Tunnel Shrink Packing Machine Other Details

♦ The delivery time of the machines for which additional (optional) features are requested is in the range of 5-20 days.
♦ It is packaged in accordance with long-distance shipments.
♦ Thanks to the courier company we have contracted with, the product is transported at an affordable price. If your company has a contracted cargo company, you can choose to use that cargo as well.
♦ Warranty is provided against factory defects.
