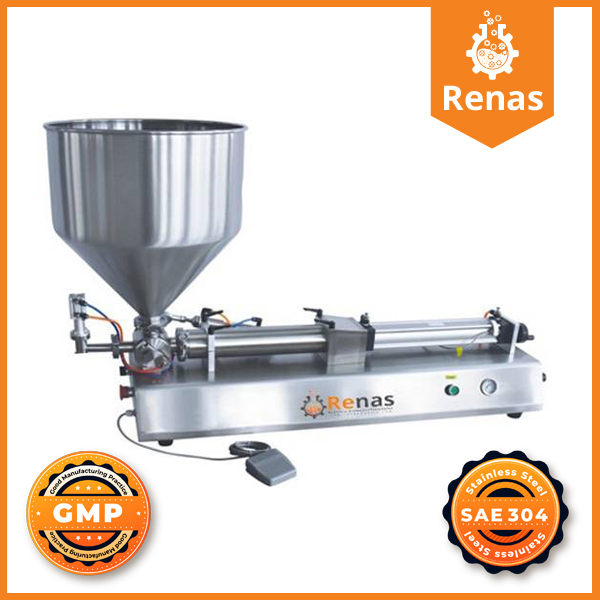

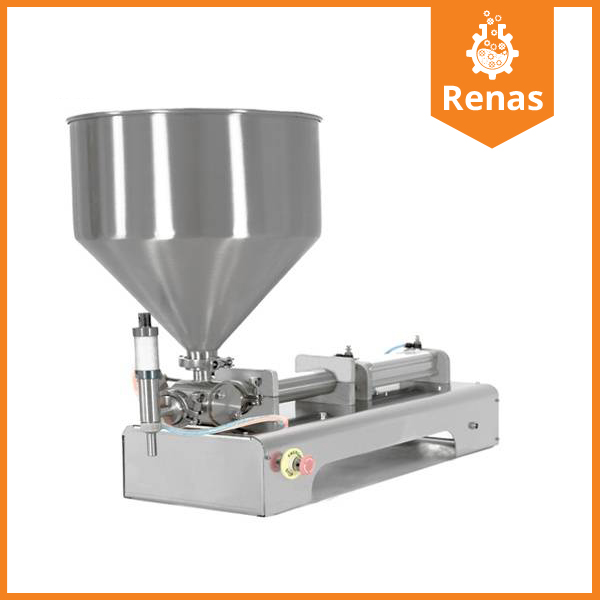

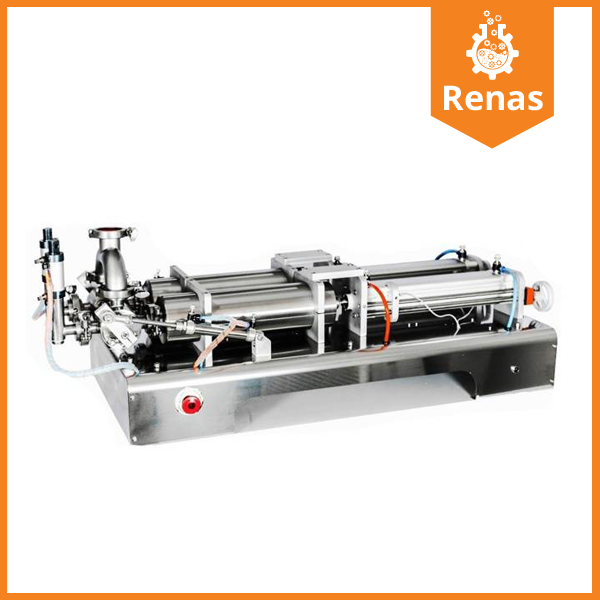

RYD-Y2 Series Double Nozzle Cream Filling Machine

RYD-Y2 Series
Technical Specifications
Working Range
10ml - 2750ml
Capacity
5-20pcs/min
Filling Sensitivity
±%1
Input Voltage
220V AC
Power consumption
0,5 kW
Air Pressure Range
0,4 - 0,6 MPa (4 - 6 Bar)
Dimensions
115 * 49,5 * 44 cm
Weight
21 KG
Way of working
Pedal or Automatic
Materiel
Stainless steel
Energy
220V / 50HZ
Suction Pipe
6mm 304 Stainless
Suction Pneumatic Cylinder
DNC Type Thick Meat, Honed Type
Nozzle Pneumatic Cylinder
Less Risk of Pen Piston Missing
Chassis
Certified 304
Sensors
Airtac Taiwan Production
Pedal Material
Metal Pedal
Outer Box Material
Wooden
Gasket Group
Domestic Manufacturing with German Raw Materials
