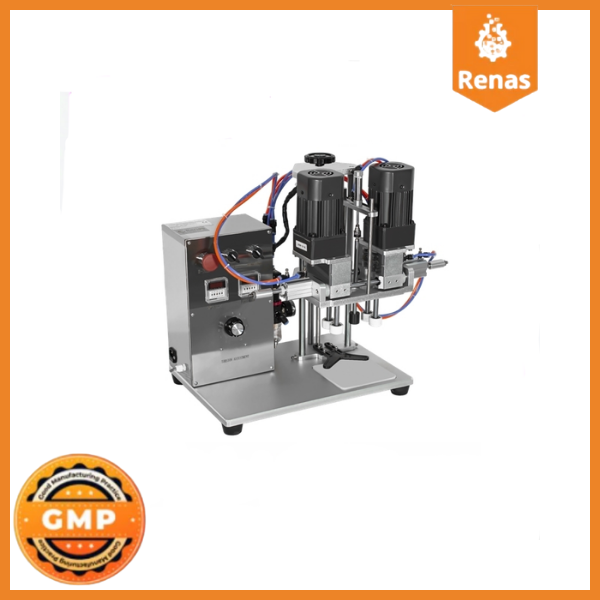

CYK-100 - Semi-Automatic Spray Capping Machine

CYK-100 - Semi Automatic Spray Capping Machine

CYK-100 -Spray Capping Machine Technical Specifications

Model CYC-100
Types of Lids It Can Close Spray, Trigger, Spout Caps, Fliptop and all screw caps
Power Consumption/Voltage 130 Watt – 220 V 50/60 HZ
Packaging Dimensions 68x58x78 cm
Weight (packaged) 39 kg
Air Pressure 6 bar
Cap Diameter and Bottle Height Between 32-70 mm – 40-200 mm
Dimensions 57x47x68 cm
Capacity 20 – 60 pieces/min
Origin CHINESE

CYK-100 - General Features of Spray Capping Machine

  1. CYK-100 high speed spray capping machine, It is especially designed for businesses working with many types of caps, Its biggest feature is that you can work on all types of screw caps by just adjusting the height and support, without changing any apparatus or parts.
  2. Our machine is the only solution for serial closing of caps such as spray, beak cap, pump cap, timing cap.
  3. Apart from the height adjustment lever on the machine, which you can easily adjust according to the bottle height, there is also a bottle fixing bar with 3 different height levels so that you can mechanically raise the machine even higher or lower it when working with smaller bottles.
  4. It is much faster and less effortless compared to manual lid closing operations.
  5. CYK-100 semi-automatic screw capping machine can work without any problems on all screw cap types. Our machine can work without any problems on many cap types; beak caps, trigger spray caps, lotion caps, essence caps, fliptop cap types, cream caps, and all screw cap types except twistoff caps.
  6. There is no need for a separate mold for each cap in capping operations. You can adjust the machine settings for the cap or bottle type you will be working with in just a few minutes. In this way, you can close the caps of all bottles from 4 cm to 20 cm in height. It is very easy to adjust the size required for the process.
  7. It has an extremely easy-to-use operator panel. You can easily adjust the tightening time and the working range of the automatic mode according to the number of teeth of the cap type. Thanks to the production number indicator on the operator panel, you can instantly view how many products you have produced.
  8. With the CYK-100 semi-automatic screw capping machine, you can work in both manual and automatic modes. A free pedal is provided with the machine so that you can work in manual mode whenever you want.
  9. This machine, which has extremely low power and air consumption, has an A++ class power consumption value. It does not require industrial current. It can be operated when connected to standard sockets.
  10. You can order the product even when it is out of stock. The delivery time is maximum 1 month depending on the workload.

CYK-100 - Capping Machine Other Details

  • It is packaged appropriately for long-distance shipments, and we can send it in a wooden case for shipments outside of Istanbul.
  • Thanks to the cargo company we have an agreement with, the transportation of the product is done at an affordable price. If your company has an agreement with a cargo company, you can also choose to use that cargo.
  • A 1-year warranty is given against factory defects.
  • The plastering wedges of the machine are consumables and are not covered by the warranty.
