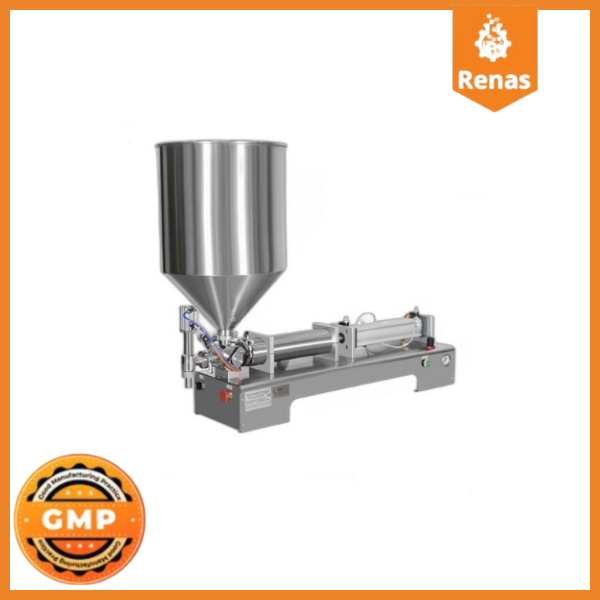

CYD-Y2500 Semi Automatic Dense Liquid Filling Machine

CYD-Y2500 Semi Automatic Dense Liquid Filling Machine

Technical Specifications of CYD-Y2500 - 300-2500ml Dense Liquid Filling Machine

Model CYD-Y2500
Operating Range 300 – 2500 ml
Capacity 5 – 8 Fills/Minute
Filling Accuracy ±1%
Input Voltage 220V AC
Input Current 1A
Power Consumption 10W
Air Pressure 0.4 – 0.6 MPa (4 – 6 Bar)
Dimensions 135 * 49.5 * 46 cm
Weight 34 kg
Operating Mode Pedal or Automatic
Material Stainless Steel
Energy 220V / 50HZ
Suction Pipe 304 Stainless
Suction Pneumatic Cylinder DNC Type Thick-Walled, Honed Type
Nozzle Pneumatic Cylinder Square Cylinder
Chassis Stainless Steel
Sensors Mindman China Production
Pedal Material Plastic Pedal
Outer Box Material Cardboard
Seal Group Silicone

General Features of CYD-Y2500 - 300-2500ml Liquid Filling Machine

  • The CYD-Y2500 semi-automatic single-nozzle dense liquid filling machine features a flanged ferrule system at its connection points, allowing for easy disassembly and quick cleaning.
  • All seals and materials in contact with the product during filling are made from antibacterial silicone. This establishes a system that meets hygiene standards (GMP requirements).
  • The precision dosing arm with a 0.5 mm stroke interval allows for operation across various filling ranges with minimal deviation using a single machine. As long as the dosing setting remains unchanged, it continues to work at the same measure.
  • The emergency button on the CYD-Y2500 semi-automatic single-nozzle dense liquid filling machine enables the machine to be safely positioned in emergencies, regardless of its position. This ensures compliance with the Occupational Safety Law No. 6331 without incurring additional costs.
  • The machine can be connected to storage or tank discharges via clamps and can also suction from sources like barrels, buckets, or jugs using a dipping method. This eliminates the need for extra effort to bring the product to the machine’s mouth, saving time.
  • The CYD-Y2500 semi-automatic single-nozzle dense liquid filling machine can be operated in two different ways according to your production speed and type. You can either run the machine in automatic mode on a timer or manually with the pedal provided free of charge.
  • The nozzle system has a drip-prevention feature. Thus, you won’t experience dripping problems after the filling is completed. As a result, neither your filled bottles get dirty, nor do you suffer weight loss due to dripping.
  • Unlike other similar products, it features a honed suction piston. This piston allows for high-precision dosing even at high weights and minimizes filling losses. Additionally, the smooth surface of the piston ensures that the piston seals last longer compared to others.
  • The internal conditioner in the machine system protects against factors like water and rust that could damage the pneumatic system. Thanks to the slide valve at the air inlet, you can cut off the air from the system without needing a different valve when you finish your work with the machine.
  • Having an electro-pneumatic system provides an advantage in achieving precise dosing and preventing weight loss.
  • The grounding in the machine’s chassis protects against electrical hazards that may occur in the machine’s body.
  • The CYD-Y2500 semi-automatic single-nozzle dense liquid filling machine can fill a variety of liquids. These include honey, molasses, pomegranate syrup, jam, shampoo, tahini, cream, hair lotion, acuka, garlic sauces, yogurt, and many other dense liquid types. It can also handle liquids like fruit juice, water, turnip juice, liquid soap, milk, liquid oil, mineral oil, syrup, and more.

    • CYD-Y2500 - Optional Features That Can Be Added to 300-2500ml Liquid Filling Machine

    In addition to the features of the CYD-Y2500 semi-automatic single nozzle dense liquid filling machine, you can also add the different features you need to the machine. The main optional features in question are as follows:
    • The machine’s sensor can be produced with a trigger mechanism.
    • The filling nozzles can be manufactured in different sizes according to requirements.
    • A mechanical position indicator counter can be optionally added. This feature and options are subject to additional charges.

    CYD-Y2500 - Liquid Filling Machine 300-2500ml - Other Details

    • The machine is packaged in a way that can be easily shipped to long distances.
    • The machine you purchased can be delivered to your address at an affordable price with our contracted courier. If you wish, shipment can be made with the cargo company you have an agreement with.
    • The machine is guaranteed for 1 year against manufacturing defects.
