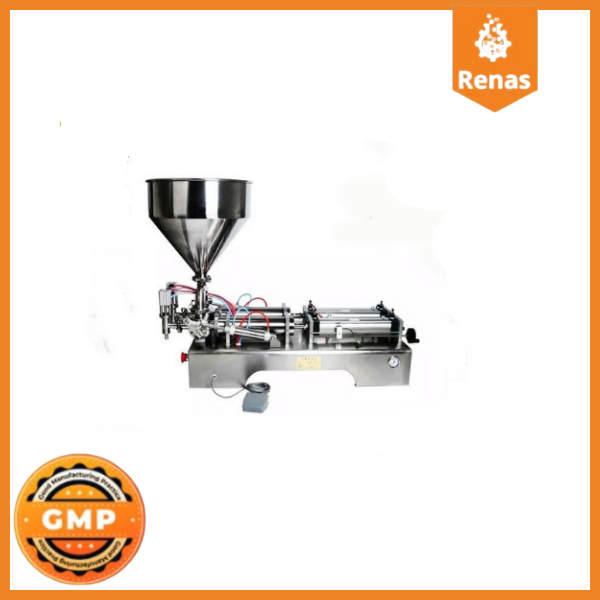

CYD-Y2-300 - Liquid Filling Machine

CYD-Y2-300 - Liquid Filling Machine

Technical Specifications of CYD2-Y500 - 20-300ml Dense Liquid Filling Machine

Model CYD2-Y300
Working Range 20 – 300 ml
Capacity 15 – 35 Fillings/Minute
Filling Accuracy ±%1
Input Voltage 220V AC
Input Current 1A
Power Consumption 10W
Air Pressure 0.4 – 0.6 MPa (4 – 6 Bar)
Dimensions 120 * 46.5 * 44 cm
Weight 24 kg
Operation Mode Foot Pedal or Automatic
Material Stainless Steel
Energy 220V / 50HZ
Suction Tube 304 Stainless
Suction Pneumatic Cylinder DNC Type Thick-Walled, Honed Type
Nozzle Pneumatic Cylinder Square Cylinder
Chassis Stainless Steel
Sensors Mindman China Manufactured
Pedal Material Plastic Pedal
Outer Box Material Cardboard
Seal Group Silicone

CYD2-Y300 - General Features of 20-300ml Double Nozzle Dense Liquid Filling Machine

  1. It can fill all low and medium viscosity products between 20 ml and 300 ml.
  2. The CYD2-Y300 semi-automatic single nozzle thick liquid filling machine has a flanged ferrule system at its connection points, allowing the machine to be easily disassembled and quickly cleaned.
  3. All seals and materials in contact with the product during filling are made from antibacterial silicone, ensuring compliance with hygiene standards (GMP conditions).
  4. The precision dosing lever with a 0.5 mm error margin allows the machine to work across a wide range of filling sizes with minimal deviation. As long as the dosage setting is not changed, it continues to operate at the same measurement.
  5. The emergency stop button on the CYD2-Y300 semi-automatic single nozzle thick liquid filling machine allows for safely positioning the machine in emergencies, regardless of its position. This ensures compliance with the Occupational Safety Law No. 6331 without additional costs.
  6. It can be connected to tank discharges with clamps and can also suck from sources like barrels, buckets, or jugs using the immersion method. This saves time as no extra effort is required to bring the product to the machine’s mouth.
  7. You can operate the CYD2-Y300 semi-automatic single nozzle thick liquid filling machine in two different ways, according to your production speed and style. You can run the machine in automatic mode with a timer, or manually using the free pedal provided with the machine.
  8. The nozzle system is designed to prevent dripping, ensuring that you won’t have drip issues after filling. As a result, neither your bottles get contaminated, nor do you experience weight loss due to drips.
  9. Unlike other similar products, it has a honed suction piston, which allows for high-precision dosing even at high weights, minimizing filling losses. Additionally, the smooth surface of the piston makes its seals more durable compared to others.
  10. The internal conditioner in the machine system protects against factors like water and rust that could damage the pneumatic system. Thanks to the slide valve at the air inlet, you can cut off the air from the system without needing another valve when you finish working with the machine.
  11. Its electro-pneumatic system offers the advantage of precise dosing, preventing weight losses.
  12. The grounding in the machine’s chassis protects it against potential electrical hazards in the machine body.
  13. The CYD2-Y300 semi-automatic single nozzle thick liquid filling machine can fill various liquids. Types of liquids that can be filled include honey, molasses, pomegranate syrup, jam, shampoo, tahini, cream, hair lotion, tomato paste, acuka, garlic sauces, yogurt, and many other thick liquid products. It can also fill liquids such as fruit juice, water, turnip juice, liquid soap, milk, liquid oil, motor oil, and syrup.

CYD2-Y300 - Liquid Filling Machine 20-300ml - Other Details

  • The machine is packaged in a way that makes it suitable for easy transportation over long distances.
  • The purchased machine can be delivered to your address at a reasonable price via our agreed shipping company. Alternatively, you can use your own shipping company for the delivery process.
  • The machine is guaranteed for 1 year against manufacturing defects.
