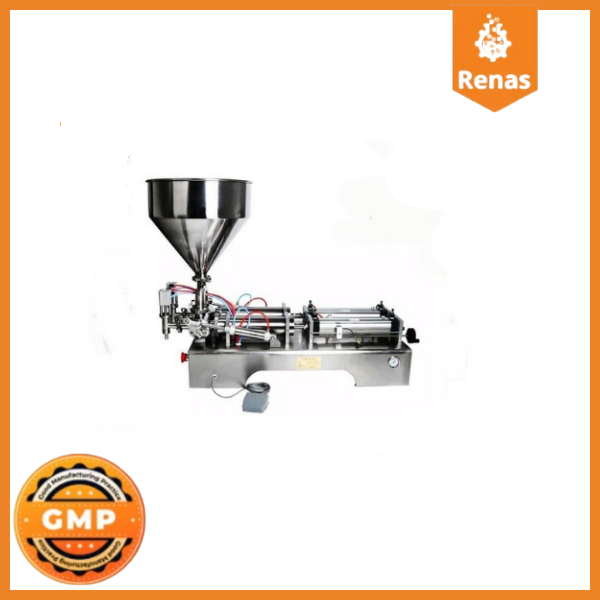

CYD-Y2-2500 2 Nozzle Liquid Filling Machine

CYD-Y2-2500 2 Nozzle Liquid Filling Machine

Technical Specifications of CYD2-Y2500 - 300-2500ml Dense Liquid Filling Machine

Model CYD2-Y2500
Working Range 300 – 2500 ml
Capacity 5 – 10 Fillings/Minute
Filling Accuracy ±%1
Input Voltage 220V AC
Input Current 1A
Power Consumption 10W
Air Pressure 0.4 – 0.6 MPa (4 – 6 Bar)
Dimensions 120 * 52.5 * 54 cm
Weight 32 kg
Operating Mode Pedal or Automatic
Material Stainless Steel
Power Supply 220V / 50HZ
Suction Pipe 304 Stainless Steel
Suction Pneumatic Cylinder DNC Type Thick Wall, Honed Type
Nozzle Pneumatic Cylinder Square Cylinder
Frame Stainless Steel
Sensors Mindman China Production
Pedal Material High-Quality Plastic
Outer Box Material Cardboard
Seal Group Silicone

CYD2-Y2500 - General Features of 300-2500ml Double Nozzle Dense Liquid Filling Machine

  1. Can fill all low and medium viscosity products between 300 ml and 2500 ml.
  2. The flange ferrule system at the connection points of the CYD2-Y2500 semi-automatic single nozzle viscous liquid filling machine allows for easy disassembly and quick cleaning.
  3. All seals and materials in contact with the product during liquid filling are made from antibacterial silicone material. Thus, you establish a system that meets hygiene conditions (GMP standards).
  4. Thanks to the precision dosing lever with a 0.5 mm gap, it allows for operation with minimal deviation across various filling ranges with a single machine. As long as the dosing setting is not changed, it continues to operate at the same measure.
  5. The emergency button on the CYD2-Y2500 semi-automatic single nozzle viscous liquid filling machine allows you to safely position the machine in emergencies, regardless of its position. This way, you comply with the Occupational Health and Safety Law No. 6331 without incurring extra costs.
  6. It can be connected to storage or tank discharges via a clamp and can also draw liquid by immersion from sources like barrels, buckets, or jugs. It does not require extra effort to bring the product to the mouth of the machine, saving you time.
  7. You can operate the CYD2-Y2500 semi-automatic single nozzle viscous liquid filling machine in two different ways according to your production speed and style. You can run the machine in automatic mode with a timer, or you can operate it manually with the pedal that comes free with the machine.
  8. The nozzle system has a drip prevention feature. Thus, you won’t experience dripping problems after the filling is complete. As a result, your filled bottles remain clean and you avoid weight loss due to dripping.
  9. Unlike other similar products, it has a honed product suction piston. This piston allows for high precision dosing even at high weights and minimizes filling losses. Additionally, the smooth surface of the piston makes its seals last longer compared to others.
  10. The internal conditioner in the machine system protects against factors like water and rust that may occur in the air system and damage the machine’s pneumatic system. With the slide valve at the air inlet of the machine, you can cut off the air from the system when you’re done with your work without needing a different valve.
  11. Having an electro-pneumatic system provides an advantage in achieving precise dosing and preventing weight loss.
  12. The grounding on the machine’s chassis protects the machine from electrical hazards that may occur in its body.
  13. With the CYD2-Y2500 semi-automatic single nozzle viscous liquid filling machine, many liquids can be filled. The types of liquids include honey, molasses, pomegranate syrup, jam, shampoo, tahini, cream, hair lotion, acuka, garlic sauces, yogurt, and many other viscous liquids. Additionally, it can also be used for filling liquids such as fruit juice, water, turnip, liquid soap, milk, liquid oil, engine oil, and syrup.

CYD2-Y2500 - Optional Features That Can Be Added to 300-2500ml Double Nozzle Liquid Filling Machine

In addition to the features of the CYD2-Y2500 semi-automatic single nozzle dense liquid filling machine, you can add the different features you need to the machine. The main optional features in question are as follows:
  • TIt can be produced with the sensor of the machine triggered.
  • The filling nozzles in the filling nozzles can be produced in different sizes according to need.
  • Optionally, a mechanical position inductor counter can be added. These features and options are subject to a fee.

CYD2-Y2500 - Liquid Filling Machine 300-2500ml - Other Details

  • The machine is packaged in a way that is suitable for easy transportation over long distances.
  • The machine you purchase can be delivered to your address at a reasonable price with our contracted cargo service. Alternatively, you can also arrange for shipment with your own preferred cargo company.
  • The machine is guaranteed for 1 year against manufacturing defects.
