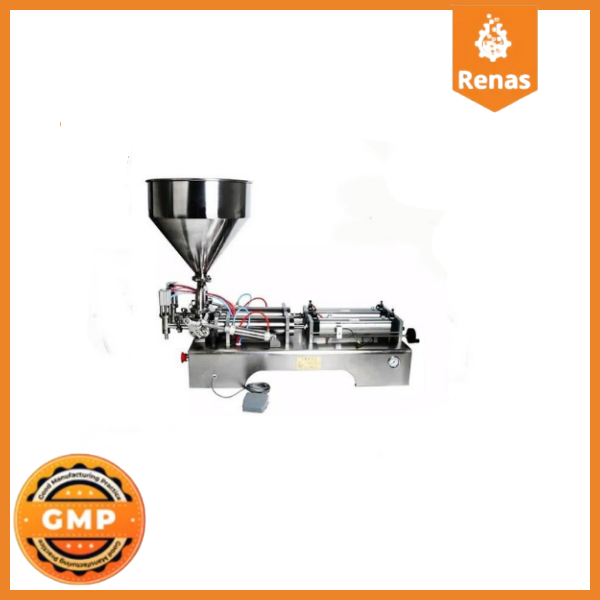

CYD-Y2-1500 Semi Automatic Liquid Filling Machine

CYD-Y2-1500 Semi Automatic Liquid Filling Machine

Technical Specifications of CYD2-Y1500 - 200-1500ml Dense Liquid Filling Machine

Model CYD2-Y1500
Operating Range 200 – 1500 ml
Capacity 15 – 35 Fillings/Minute
Filling Accuracy ±%1
Input Voltage 220V AC
Input Current 1A
Power Consumption 10W
Air Pressure 0.4 – 0.6 MPa (4 – 6 Bar)
Dimensions 120 * 52.5 * 54 cm
Weight 32 kg
Operating Mode Pedal or Automatic
Material Stainless Steel
Power 220V / 50HZ
Suction Tube 304 Stainless Steel
Suction Pneumatic Cylinder DNC Type Thick-Walled, Honed Type
Nozzle Pneumatic Cylinder Square Cylinder
Chassis Stainless Steel
Sensors Special Sensors
Pedal Material Plastic Pedal
Outer Box Material Cardboard
Seal Group Silicone

CYD2-Y1000 - General Features of 100-1000ml Double Nozzle Dense Liquid Filling Machine

  1. It can fill all low and medium viscosity products ranging from 200 ml to 1500 ml.
  2. The CYD2-Y1500 semi-automatic single-nozzle thick liquid filling machine has a flanged ferrule system at its connection points, allowing the machine to be easily disassembled and quickly cleaned.
  3. All seals and materials in contact with the product during filling are made of antibacterial silicone, ensuring compliance with hygiene standards (GMP requirements).
  4. The precision dosing lever with a 0.5 mm gap allows the machine to operate across a wide range of filling volumes with minimal deviation. It continues to work at the same measure as long as the dosing setting is not changed.
  5. The emergency button on the CYD2-Y1500 semi-automatic single-nozzle thick liquid filling machine allows for safe positioning of the machine in emergencies, regardless of its position, complying with the occupational safety law No. 6331 without extra costs.
  6. The machine can be connected to tank discharges with clamps and can also draw from sources like barrels, buckets, or jugs using a dipping method. It requires no extra effort to bring the product to the machine’s opening, saving time.
  7. You can operate the CYD2-Y1500 semi-automatic single-nozzle thick liquid filling machine in two different ways based on your production speed and style: either in automatic mode with a timer or in manual mode with the free pedal provided with the machine.
  8. The nozzle system is designed to prevent drips, so you won’t experience any dripping problems after filling. As a result, both your filled bottles stay clean, and you avoid weight losses due to drips.
  9. Unlike similar products, it has a honed suction piston. This piston allows for high precision dosing even at high weights, minimizing filling losses. Additionally, the smooth surface of the piston makes the seals more durable compared to others.
  10. The internal conditioner in the machine protects against water and rust that could damage the pneumatic system. Thanks to the slide valve at the air inlet, you can cut off the air from the system without needing another valve when you finish your work with the machine.
  11. Having an electro-pneumatic system provides an advantage in precise dosing, preventing weight losses.
  12. The grounding in the machine’s chassis protects it from electrical hazards that may occur in the machine’s body.
  13. The CYD2-Y1500 semi-automatic single-nozzle thick liquid filling machine can fill many liquids. These include honey, molasses, pomegranate syrup, jam, shampoo, tahini, cream, hair lotion, tomato paste, acuka, garlic sauces, yogurt, and many other thick liquid products. It can also handle liquids such as fruit juice, water, turnip juice, liquid soap, milk, liquid oil, motor oil, and syrup.

CYD2-Y1500 - Optional Features That Can Be Added to 200-1500ml Double Nozzle Liquid Filling Machine

In addition to the features of the CYD2-Y1500 semi-automatic single nozzle dense liquid filling machine, you can add the different features you need to the machine. The main optional features in question are as follows:
  • The machine’s sensor can be produced with a trigger mechanism.
  • The filling nozzles can be manufactured in different sizes according to needs.
  • A mechanical position indicator counter can be optionally added. This feature and options are subject to an additional charge.

CYD2-Y1500 - Liquid Filling Machine 200-1500ml - Other Details

  • The machine is packaged in a way that allows for easy transportation over long distances.
  • The purchased machine can be delivered to your address at a reasonable price with our contracted shipping service. Alternatively, shipping can be arranged with your own shipping company.
  • The machine is guaranteed for one year against manufacturing defects.
