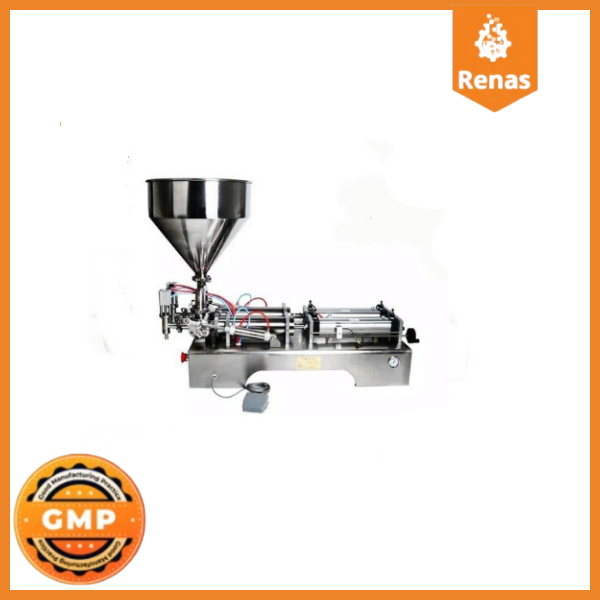

CYD-Y2-100 Liquid Filling Line

CYD-Y2-100 Liquid Filling Line

CYD2-Y100 - Technical Specifications of 10-100ml Dense Liquid Filling Machine

Model CYD2-Y100
Operating Range 10 – 100 ml
Capacity 15 – 35 Fillings/Minute
Filling Accuracy ±%1
Input Voltage 220V AC
Input Current 1A
Power Consumption 10W
Air Pressure 0.4 – 0.6 MPa (4 – 6 Bar)
Dimensions 120 * 42.5 * 44 cm
Weight 22 kg
Operation Type Pedal or Automatic
Material Stainless Steel
Energy 220V / 50HZ
Suction Pipe 304 Stainless Steel
Suction Pneumatic Cylinder DNC Type Thick Wall, Honed Type
Nozzle Pneumatic Cylinder Square Cylinder
Chassis Stainless Steel
Sensors Mindman China Production
Pedal Material Plastic Pedal
Outer Box Material Cardboard
Seal Group Silicone

CYD2-Y100 - General Features of 10-100ml Double Nozzle Dense Liquid Filling Machine

  1. It can fill all low and medium viscosity products between 10 ml and 100 ml.
  2. The CYD2-Y100 semi-automatic single-nozzle heavy liquid filling machine features a flanged ferrule system at its connection points, allowing the machine to be easily disassembled and quickly cleaned.
  3. All seals and materials in contact with the product during the liquid filling process are made from anti-bacterial silicone. This establishes a system that meets hygiene standards (GMP requirements).
  4. Thanks to the precise dosing arm with a 0.5 mm tolerance, it allows operation across various filling ranges with minimal deviation using a single machine. As long as the dosing setting remains unchanged, it continues to work at the same measure.
  5. The emergency button on the CYD2-Y100 semi-automatic single-nozzle heavy liquid filling machine ensures that the machine can be safely positioned in emergencies, regardless of its position. This aligns your production method with the Occupational Safety Law No. 6331 without requiring additional costs.
  6. The machine can be connected to tanks or discharge points with clamps and can also perform suction from containers like buckets or jugs using the immersion method. It does not require extra effort to bring the product to the machine’s opening, saving you time.
  7. You can operate the CYD2-Y100 semi-automatic single-nozzle heavy liquid filling machine in two different ways, depending on your production speed and style. You can run the machine in automatic mode with a timer or manually with the pedal provided free of charge.
  8. The nozzle system features a drip-prevention mechanism, ensuring that you do not experience dripping issues after the filling is completed. As a result, your filled bottles remain clean, and you do not suffer weight losses due to drips.
  9. Unlike other similar products, it has a honed suction piston. This piston allows for high-precision dosing even at high weights and minimizes filling losses. Additionally, the smooth surface of the piston results in longer-lasting seals compared to its counterparts.
  10. The internal conditioner in the machine system protects against factors such as water and rust that could damage the pneumatic system. With the slide valve at the air inlet of the machine, you can cut off the air from the system when you finish working with the machine, without needing a separate valve.
  11. Having an electro-pneumatic system provides an advantage in achieving precise dosing and preventing weight losses.
  12. The grounding in the machine chassis protects the machine from electrical hazards that may occur in its body.
  13. With the CYD2-Y100 semi-automatic single-nozzle heavy liquid filling machine, many liquids can be filled. Among these liquid types are honey, molasses, pomegranate syrup, jam, shampoo, tahini, cream, hair lotion, tomato paste, acuka, garlic sauces, yogurt, as well as many other thick liquid products. Additionally, it can handle various liquids such as fruit juice, water, turnip juice, liquid soap, milk, liquid oil, motor oil, and syrup.

CYD2-Y100 - Optional Features That Can Be Added to 10-100ml Double Nozzle Liquid Filling Machine

In addition to the features of the CYD2-Y100 semi-automatic single nozzle dense liquid filling machine, you can add the different features you need to the machine. The main optional features in question are as follows:
  • The machine’s sensor can be produced in a triggered manner.
  • The filling nozzles can have different sizes produced according to needs.
  • A mechanical position indicator counter can be optionally added. This feature and options are subject to additional charges.

CYD2-Y100 - Liquid Filling Machine 10-100ml - Other Details

  • The machine is packaged in a way suitable for easy transport over long distances.
  • The purchased machine can be delivered to your address at a reasonable price via our contracted cargo service. Alternatively, you can arrange shipment with your own preferred cargo company.
  • The machine is guaranteed for one year against manufacturing defects.
