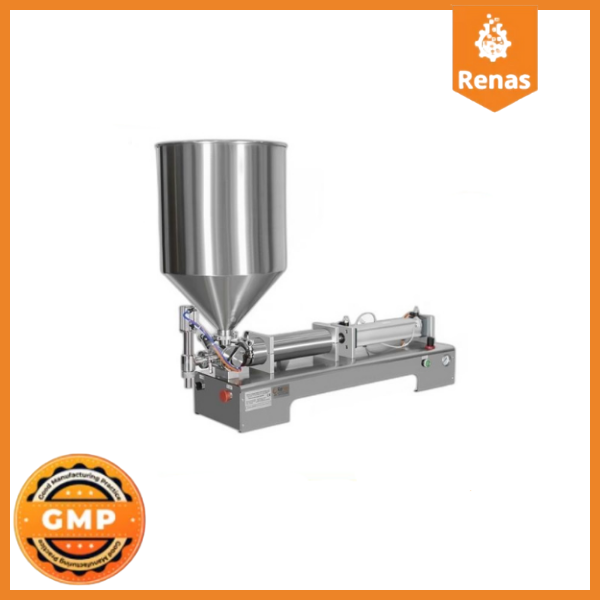

CYD-Y1500 Semi Automatic Dense Liquid Filling Machine

CYD-Y1500 Semi Automatic Dense Liquid Filling Machine

Technical Specifications of CYD-Y1500 - 200-1500ml Dense Liquid Filling Machine

Model CYD-Y1500
Working Range 200 – 1500 ml
Capacity 10 – 30 Fillings/Minute
Filling Accuracy ±1%
Input Voltage 220V AC
Input Current 1A
Power Consumption 10W
Air Pressure 0.4 – 0.6 MPa (4 – 6 Bar)
Dimensions 125 * 49.5 * 46 cm
Weight 30 kg
Operation Type Pedal or Automatic
Material Stainless Steel
Power Supply 220V / 50HZ
Suction Pipe 304 Stainless
Suction Pneumatic Cylinder DNC Type Thick Wall, Honed Type
Nozzle Pneumatic Cylinder Square Cylinder
Chassis Stainless Steel
Sensors Mindman Made in China
Pedal Material Plastic Pedal
Outer Box Material Cardboard
Seal Group Silicone

General Features of CYD-Y1500 - 200-1500ml Liquid Filling Machine

  1. It can fill all low and medium viscosity products ranging from 200 ml to 1500 ml.
  2. The flanged ferrule system at the connection points of the CYD-Y1500 semi-automatic single nozzle heavy liquid filling machine allows for easy disassembly and quick cleaning.
  3. All sealing materials, such as gaskets and seals, that come into contact with the product during filling are made from antibacterial silicone. This ensures a system that meets hygiene standards (GMP requirements).
  4. The precise dosing lever with a 0.5 mm pitch interval allows the machine to operate with minimal deviation across a wide filling range. It continues to work at the same measurement as long as the dosing setting is not changed.
  5. The emergency button on the CYD-Y1500 semi-automatic single nozzle heavy liquid filling machine allows you to safely bring the machine to a secure position in emergencies, regardless of its position. This ensures compliance with the Occupational Health and Safety Law No. 6331 without incurring additional costs.
  6. The machine can be connected to tank discharges via a clamp, allowing for suction through sources such as drums, buckets, or jars using a dipping method. It requires no extra effort to bring the product to the machine’s opening, saving you time.
  7. You can operate the CYD-Y1500 semi-automatic single nozzle heavy liquid filling machine in two different ways according to your production speed and style. You can run the machine in automatic mode with a timer, or in manual mode using the pedal that is provided free of charge with the machine.
  8. The nozzle system has a drip prevention mechanism, eliminating dripping problems after filling. As a result, your filled bottles remain clean, and you avoid weight losses caused by drips.
  9. Unlike other similar products, it features a honed suction piston. This piston allows for high precision dosing even at high weights, minimizing filling losses. Additionally, the smooth surface of the piston ensures that the seals last longer compared to others.
  10. The internal conditioner in the machine system protects against factors like water and rust that could harm the pneumatic system. The slide valve at the air inlet allows you to cut off the air from the system without needing a separate valve when you finish working with the machine.
  11. Having an electro-pneumatic system provides an advantage in achieving precise dosing and preventing weight losses.
  12. The grounding in the machine’s chassis protects against electrical hazards that may occur in the machine body.
  13. The CYD-Y1500 semi-automatic single nozzle heavy liquid filling machine can fill many liquids. These include various types of thick liquids such as honey, molasses, pomegranate syrup, jam, shampoo, tahini, cream, hair lotion, acuka, garlic sauces, yogurt, and many others. Additionally, it can handle liquids like fruit juice, water, turnip juice, liquid soap, milk, liquid oil, motor oil, and syrup.

CYD-Y1500 - Optional Features That Can Be Added to 200-1500ml Liquid Filling Machine

In addition to the features of the CYD-Y1000 semi-automatic single nozzle dense liquid filling machine, you can add the different features you need to the machine. The main optional features in question are as follows:
  • It can be produced by triggering the machine’s sensor.
  • The filling nozzles in the filling nozzles can be produced in different sizes according to need.
  • Optionally, a mechanical position inductor counter can be added. These features and options are subject to a fee

CYD-Y1500 - Liquid Filling Machine 200-1500ml - Other Details

  • The machine is packaged in a way that can be easily shipped to long distances.
  • The machine you purchased can be delivered to your address at an affordable price with our contracted courier. If you wish, shipment can be made with the cargo company you have an agreement with.
  • The machine is guaranteed for 1 year against manufacturing defects.
