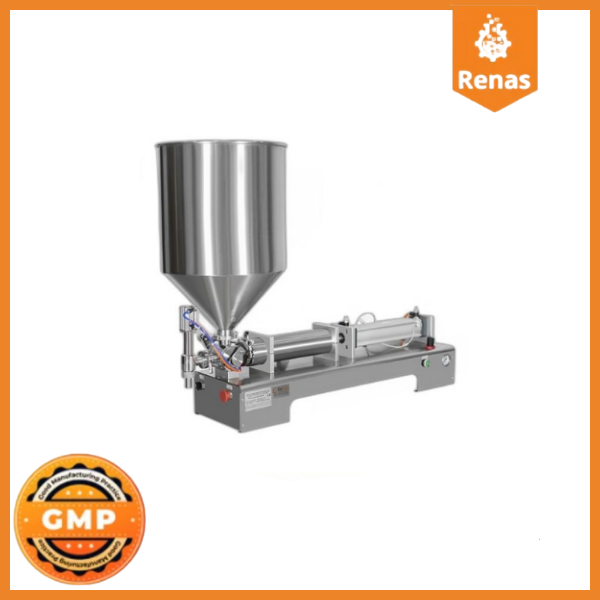

CYD-Y1000 Single Nozzle Intensive Liquit Filling Machine

CYD-Y1000 Single Nozzle Intensive Liquit Filling Machine

Technical Specifications of CYD-Y1000 - 100-1000ml Dense Liquid Filling Machine

Model
 CYD-Y1000
Operating Range
 100 – 1000 ml
Capacity
 10 – 30 Fillings/Minute
Filling Accuracy
 ±%1
Input Voltage
 220V AC
Input Current
 1A
Power Consumption
 10W
Air Pressure
 0.4 – 0.6 MPa (4 – 6 Bar)
Dimensions
 115 * 49.5 * 44 cm
Weight
 27 kg
Operation Mode
 Pedal or Automatic
Material
 Stainless Steel
Energy
 220V / 50HZ
Suction Pipe
 304 Stainless
Suction Pneumatic Cylinder
 DNC Type Thick-Walled, Honed Type
Nozzle Pneumatic Cylinder
 Square Cylinder
Chassis
 Stainless Steel
Sensors
 Airtac China Made
Pedal Material
 Plastic Pedal
Outer Box Material
 Cardboard
Seal Group
 Silicone

General Features of CYD-Y1000 - 100-1000ml Liquid Filling Machine

  1. It can fill all low and medium viscosity products between 100 ml and 1000 ml.
  2. The CYD-Y1000 semi-automatic single nozzle filling machine features a flanged ferrule system at its connection points, allowing for easy disassembly and quick cleaning.
  3. All seals and gaskets in contact with the product during filling are made of anti-bacterial silicone material. This ensures that you establish a system that meets hygiene standards (GMP requirements).
  4. The precise dosing lever with a 0.5 mm stroke interval allows for operation across a wide filling range with minimal deviation using a single machine. It continues to operate at the same measurement as long as the dosing adjustment is not changed.
  5. The emergency button on the CYD-Y1000 semi-automatic single nozzle filling machine allows for safely positioning the machine in emergencies, regardless of its position. This ensures compliance with the Occupational Safety Law No. 6331 without incurring extra costs.
  6. The machine can be connected to storage or tank discharges via clamps and can also draw from sources such as barrels, buckets, or jugs using a dipping method. It requires no extra effort to bring the product to the machine’s opening, saving you time.
  7. The CYD-Y1000 semi-automatic single nozzle filling machine can be operated in two different ways according to your production speed and style. You can either run the machine in automatic mode with a timer or use the provided pedal for manual operation.
  8. The nozzle system has a drip-preventive mechanism, so you won’t experience dripping problems after filling. As a result, your filled bottles remain clean, and you avoid weight loss due to drips.
  9. Unlike similar products, it features a honed suction piston. This piston allows for precise dosing even at high weights, minimizing filling losses. Additionally, the smooth surface of the piston makes its seals more durable compared to others.
  10. The internal conditioner in the machine protects against factors like water and rust that could damage the pneumatic system. With the slide valve located at the air inlet of the machine, you can cut off the air supply without needing a different valve once you finish working with the machine.
  11. Having an electro-pneumatic system provides an advantage in making precise dosages, preventing weight loss.
  12. The grounding on the machine’s chassis protects it from electrical hazards that may occur in the machine’s body.
  13. The CYD-Y1000 semi-automatic single nozzle filling machine can fill many types of liquids. These include honey, molasses, pomegranate syrup, jam, shampoo, tahini, cream, hair lotion, tomato paste, acuka, garlic sauces, yogurt, and many other thick liquid products. It is also suitable for juices, water, turnip juice, liquid soap, milk, liquid oil, motor oil, syrup, and more.

CYD-Y1000 - Optional Features That Can Be Added to 100-1000ml Liquid Filling Machine

In addition to the features of the CYD-Y1000 semi-automatic single nozzle dense liquid filling machine, you can add the different features you need to the machine. The main optional features in question are as follows:
  • It can be produced by triggering the machine’s sensor.
  • The filling nozzles in the filling nozzles can be produced in different sizes according to need.
  • Optionally, a mechanical position inductor counter can be added. These features and options are subject to a fee

CYD-Y1000 - Liquid Filling Machine 100-1000ml - Other Details

  • The machine is packaged in a way that can be easily shipped to long distances.
  • The machine you purchased can be delivered to your address at an affordable price with our contracted courier. If you wish, shipment can be made with the cargo company you have an agreement with.
  • The machine is guaranteed for 1 year against manufacturing defects.
