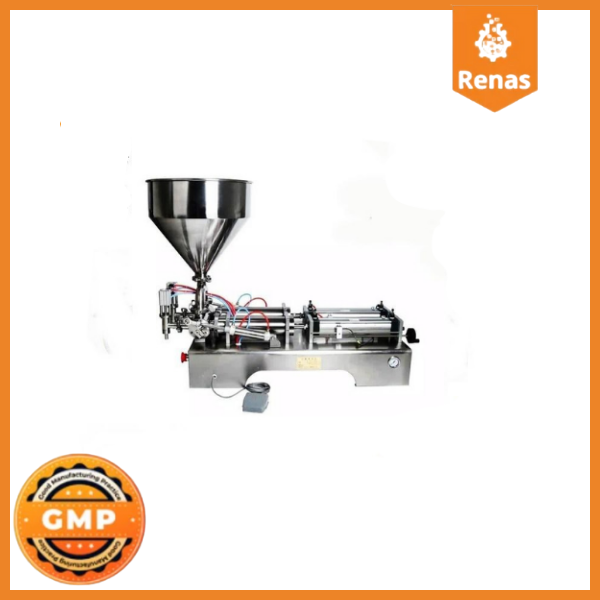

CYD-Y100 Semi Automatic Dense Liquid Filling Machine

CYD-Y100 Semi Automatic Dense Liquid Filling Machine

Technical Specifications of CYD-Y100 10-100 ml Liquid Filling Machine

Model CYD-Y100
Operating Range 10 – 100 ml
Capacity 5-20 Fillings/Minute
Filling Accuracy ±%1
Input Voltage 220V AC
Power Consumption 0,5 kW
Air Pressure 0,4 – 0,6 MPa (4 – 6 Bar)
Dimensions 115 * 49,5 * 44 cm
Weight 21 kg
How it works Pedal or Automatic
Materiel Stainless steel
Energy 220V / 50HZ
Suction Pipe 3mm 304 Stainless
Suction Pneumatic Cylinder DNC Type Thick Wall, Honed Type
Nozzle Pneumatic Cylinder Low Risk of Square Piston Missing
Chassis Certified 304
sensors Mindman Made in China
Pedal Material Plastic Pedal
Outer Box Material Cardboard Box

General Features of CYD-Y100 - 10-100 ml Liquid Filling Machine

  1. Can fill all low, medium and high viscosity products between 10ml – 100ml.
  2. Compared to old methods, it provides a more professional liquid filling environment.
  3. It has a flanged ferrule system. In this way, parts of the machine can be quickly disassembled and assembled. As a result, cleaning and maintenance operations can be completed quickly.
  4. Parts such as gaskets, o-rings and felts are made of anti-bacterial material. In this way, you create a working environment that complies with GMP conditions, which are hygiene conditions.
  5. CYD-Y100 semi-automatic dense liquid filling machine has a precise dosing arm with a 0.5 line spacing. Thanks to its sensitive dosing arm, it operates with minimum deviation during liquid filling operations. Unless a change is made in the dosing settings, it continues to work at the same level.
  6. Thanks to its emergency button, the machine can be stopped immediately in case of emergency. With this feature, the machine allows you to work in accordance with the occupational safety law number 6331.
  7. Depending on your production method and quantity, it can be operated in automatic and manual mode. A pedal switch is sent free of charge with the machine so that it can operate in manual mode.
  8. CYD-Y100 semi-automatic dense liquid filling machine has an anti-bacterial stock bunker system with increased strength and easy to clean. Thanks to the stock bunker, the machine can be cleaned in a short time after the liquid filling process is completed.
  9. It has an anti-drip nozzle system. Thanks to this nozzle system, no liquid drips after the filling process is completed. In this way, it prevents weight loss and prevents the filled bottles from becoming dirty.
  10. The honed product has a suction piston, which is not found in similar products. In this way, it provides high-precision dosing even in high-grammage liquid filling processes.
  11. Thanks to its internal conditioner, it protects the machine against factors such as water and rust that may occur in the air installation and negatively affect the pneumatic system of the machine.
  12. CYD-Y100 semi-automatic dense liquid filling machine; It can be used in filling processes of liquids with dense volumes such as honey, molasses, pomegranate syrup, jam, shampoo, tahini, cream, hair lotion, tomato paste, acuka, garlic sauces, yoghurt, paints with thick consistency, car polish, ketchup, mayonnaise, mustard sauce.

CYD-Y100 - Optional Features That Can Be Added to 10-100ml Liquid Filling Machine

In addition to the features of the CYD-Y100 semi-automatic dense liquid filling machine, you can also add the different features you need to the machine. The main optional features in question are as follows:
    • Optionally, the points in contact with the product can be produced from a different material.
    • It can be produced suitable for product fillings that require high temperatures.
    • A mixer that works at different speeds or whose speed can be adjusted can be made.
    • The machine can be developed with sensor triggering.
    • It can be produced with a heater, double wall or single wall for products that need to stay warm at all times.
    • It can be produced to suit situations where you need to work at different voltages.
    • An optional mechanical position inductor counter can be added. These features and options are subject to a fee

CYD-Y100 - Liquid Filling Machine - 10-100ml - Other Details

In addition to the features of the CYD-Y100 semi-automatic dense liquid filling machine, you can also add the different features you need to the machine. The main optional features in question are as follows:
  • Delivery time for machines requiring additional (optional) features varies between 5-20 days.
  • It is packaged in accordance with long-distance cargo shipments.
  • Thanks to the cargo company we have an agreement with, the transportation of the product is carried out at an affordable price. If your company already has a contracted cargo company, you can choose to use that cargo company as well.
  • 1 year warranty is given against manufacturing defects.
