CYD-S2 Double Nozzle Liquid Filling Machine

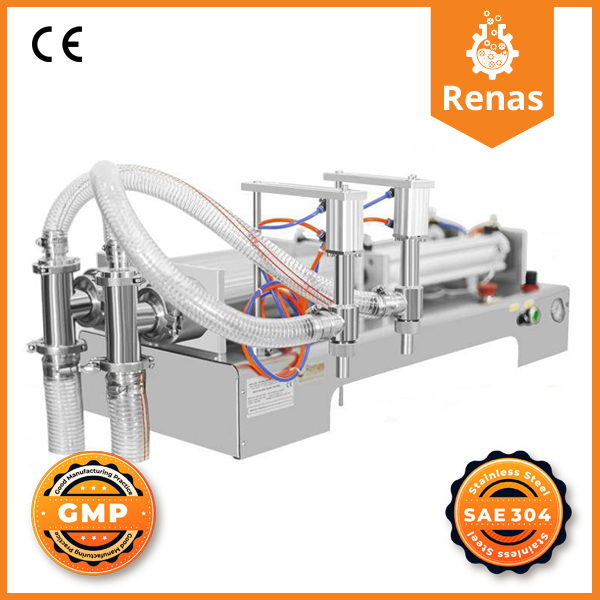

CYD-S2 Series Double Nozzle Liquid Filling Machine

General Features of CYD-S2 Double Nozzle Liquid Filling Machines

Features / Series CYD-S2-100 CYD-S2-300 CYD-S2-500 CYD-S2-1000 CYD-S2-1500 CYD-S2-2500
Price
1.875,00$
1.850,00$
2.000,00$
1.990,00$
2.250,00$
2.400,00$
Working Range
10 - 100ml
20 - 300 ml
50 - 500 ml
100 - 1000 ml
200 - 1500 ml
300 - 2500 ml
Capasity
10 - 30 units Filling/Minute
10 - 30 units Filling/Minute
10 - 30 units Filling/Minute
10 - 30 units Filling/Minute
10 - 30 units Filling/Minute
10 - 30 units Filling/Minute
Filling Sensitivity
±%1
±%1
±%1
±%1
±%1
±%1
Input Voltage
220V AC
220V AC
220V AC
220V AC
220V AC
220V AC
Power consumption
10W
10W
10W
20W
10W
10W
Air pressure
0,4 - 0,6 MPa (4 - 6 Bar)
0,4 - 0,6 MPa (4 - 6 Bar)
0,4 - 0,6 MPa (4 - 6 Bar)
0,4 - 0,6 MPa (4 - 6 Bar)
0,4 - 0,6 MPa (4 - 6 Bar)
0,4 - 0,6 MPa (4 - 6 Bar)
Dimensions
115 * 49,5 * 44 cm
115 * 49,5 * 44 cm
115 * 49,5 * 46 cm
115 * 49,5 * 46 cm
115 * 49,5 * 46 cm
115 * 49,5 * 46 cm
Weight
35KG
20KG
20KG
55KG
23KG
20KG
Way of Working
Pedal or Automatic
Pedal or Automatic
Pedal or Automatic
Pedal or Automatic
Pedal or Automatic
Pedal or Automatic
Material
Stainless steel
Stainless steel
Stainless steel
Stainless steel
Stainless steel
Stainless steel
Energy
220V / 50HZ
220V / 50HZ
220V / 50HZ
220V / 50HZ
220V / 50HZ
220V / 50HZ
Suction Pipe
304 Stainless
304 Stainless
304 Stainless
304 Stainless
304 Stainless
304 Stainless
Suction Pneumatic Cylinder
DNC Type Bold, Honed Tip
DNC Type Bold, Honed Tip
DNC Type Bold, Honed Tip
DNC Type Bold, Honed Tip
DNC Type Bold, Honed Tip
DNC Type Bold, Honed Tip
Nozzle Pneumatic Cylinder
Less Risk of Pen Piston Missing
Less Risk of Pen Piston Missing
Less Risk of Pen Piston Missing
Less Risk of Pen Piston Missing
Less Risk of Pen Piston Missing
Less Risk of Pen Piston Missing
Chassis
Certified 304
Certified 304
Certified 304
Certified 304
Certified 304
Certified 304
  • It can fill all low and medium viscosity products between 10 – 5000 ml.
  • Compared to the old methods, it is more hygienic, faster and more sensitive. Therefore, the fillings made with these machines are much more professional and suitable for industrial production.
  • Flanged ferrule system allows easier disassembly and assembly. In this way, you can easily handle the maintenance and cleaning works of the machine.
  • The production of materials such as gaskets and felts at the points that come into contact with the product while the machine is filling is made of anti-bacterial silicone material. Thus, you establish a system that meets the hygiene requirements (GMP requirements).
  • It has a sensitive dosing arm. In this way, you can perform filling operations with minimum deviation at different filling intervals.
  • It has an emergency button. Thanks to this button, the machine can be stopped in an emergency regardless of the position of the machine. Thus, you fulfill the requirements of the labor law numbered 6331.

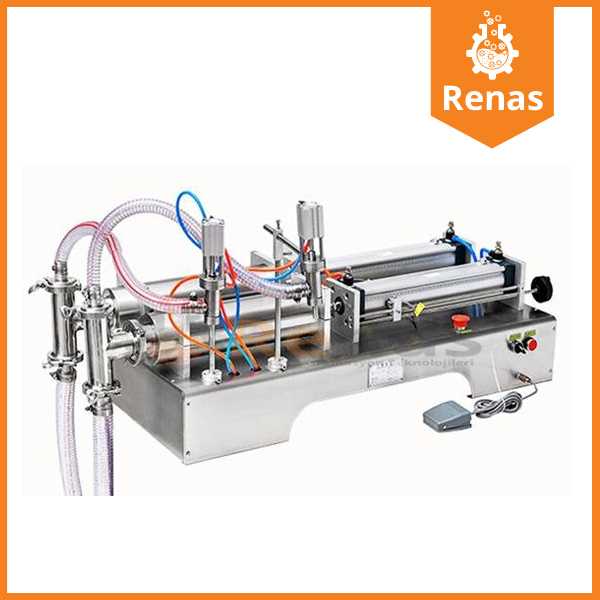

  • There are two different working methods available. One of these working methods is automatic. If you wish, you can also use the filling machine in manual mode thanks to the pedal provided free of charge.
  • CYD-S2-5000 double nozzle industrial liquid filling machine has anti-drip nozzle system. Thanks to this system, no dripping occurs after the fillings are completed. In this way, you will prevent the weight loss that may occur.
  • It has a honed product suction piston. Thanks to the suction piston, it fills with high precision even in high weight product fillings. Thanks to the slide valve system at the air inlet, air can be cut off from the system when the process is completed with the machine, without the need for an additional valve.
  • The body of the machine is made of SUS 304 stainless steel.
  • The machine is under protection against electrical hazards thanks to the grounding in the machine chassis.
  • Having an electro-pneumatic system provides an advantage in avoiding weight losses by precise dosing.
  • It can be used in the filling processes of many liquid products such as fruit juice, water, turnip, low viscosity shampoo, liquid soap, milk, oil, mineral oil, syrup.

CYD-S2 Double Nozzle Liquid Filling Machines Optional Features

In addition to the features of the CYD-S2-100 Double nozzle industrial liquid filling machine, you can add different features you need to the machine. The main optional features in question are as follows:

  • Depending on your production capacity, it can be developed for different filling intervals.
  • The filling nozzles on the filling nozzles can be developed in different sizes depending on the demand.
  • Optionally, mechanical position inductor counter can be added. These features and options are subject to charge.
  • Parts in contact with the product can be produced from different materials upon request.
  • If your production line requires a liquid filling machine that requires high heat, the machine can be produced to be suitable for liquid fillings that require high heat.
    CYD-S2 Double Nozzle Liquid Filling Machines – More Details
  • If different optional features are added to the machine produced as standard, the delivery time of the product will be in the range of 5-20 days.
  • Renas Makina is packaged in a way that is suitable for sending to points far from the production center.
  • The machine you want to buy can be sent at an affordable price with the cargo we have agreed with as Renas Makina. If there is already a courier company that your organization has a contract with, the shipping process can also be provided with that courier company.
  • 1 year warranty is given with the assurance of Renas Makina against factory faults.
