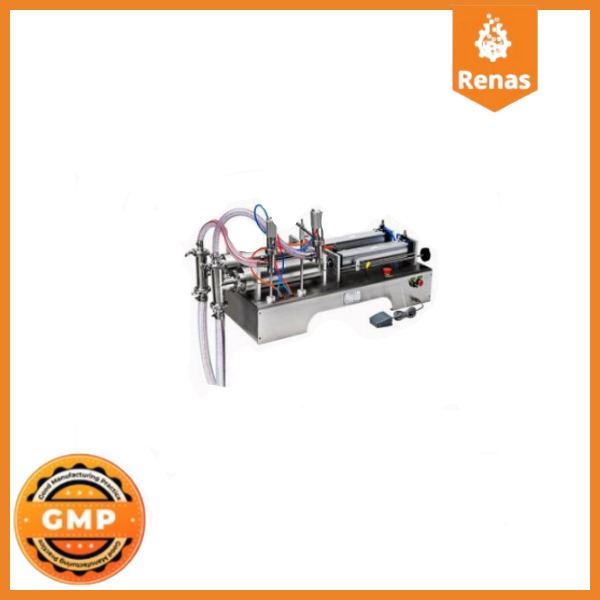

CYD-S2-5000 Double Nozzle Industrial Liquid Filling Machine

CYD-S2-5000 Double Nozzle Industrial Liquid Filling Machine

Technical Specifications of CYD-S2-5000 - 1000-5000 ml Liquid Filling Machine

Model CYD-S2-5000
Operating Range 1000 – 5000 ml
Capacity 5 – 10 Filling / Minute
Filling Accuracy ±%1
Input Voltage 220V AC
Input Current 1A
Power Consumption 20W
Air Pressure 0,4 – 0,6 MPa (4 – 6 Bar)
Dimensions 115 * 46,5 * 52 cm
Weight 58 kg
How it works Pedal or Automatic
Materiel Stainless steel
Energy 220V / 50HZ

General Features of CYD-S2-5000 - 1000-5000ml Liquid Filling Machine

  1. It can fill all low and medium viscosity products between 1000 – 5000 ml.
  2. It is a more hygienic, faster and more sensitive machine than the old methods. Therefore, the fillings made with this machine are much more professional and suitable for industrial production.
  3. It has all the features in the CYD-S series. In addition, its biggest difference from the CYD-S series is that it allows you to fill two products at the same time with its double nozzle. You can fill two different products in two different weights at the same time.
  4. The flanged ferrule system at the connection points allows the machine to be easily disassembled and cleaned quickly.
  5. All materials such as gaskets and felts at the points that come into contact with the product while the machine is filling are made of anti-bacterial silicone material. In this way, you will establish a system that meets hygiene conditions (GMP conditions).
  6. It has a sensitive dosing arm. In this way, you can perform filling operations at different filling intervals with minimum deviation.
  7. It has an emergency button. Thanks to this button, the machine can be stopped in emergency situations regardless of the position of the machine. Thus, you will fulfill the requirements of Labor Law No. 6331.
  8. There are two different working methods. One of these working methods is automatic. If you wish, you can also use the filling machine in manual mode thanks to the pedal provided free of charge.
  9. CYD-S2-5000 double nozzle industrial liquid filling machine has an anti-drip nozzle system. Thanks to this system, no dripping occurs after filling is completed. In this way, you can prevent grammage losses that may occur.
  10. Honed product has a suction piston. Thanks to the suction piston, it fills with high precision even in high-grammage product fillings. Thanks to the slide valve system located at the air inlet, air can be cut off from the system when the operation is completed with the machine without the need for an additional valve.
  11. The body of the machine and other metal parts are made of stainless steel.
  12. The machine is protected against electrical hazards thanks to the grounding in the machine chassis.
  13. Having an electro-pneumatic system provides an advantage in preventing weight wastage by making precise dosing.
  14. It can be used in the filling processes of many liquid products such as fruit juice, water, turnip, low viscosity shampoo, liquid soap, milk, oil, mineral oil and syrup.

Optional Features That Can Be Added to CYD-S2-5000 - 1000-5000ml Liquid Filling Machine

In addition to the features of the CYD-S2-100 double nozzle industrial liquid filling machine, you can add the different features you need to the machine. The main optional features in question are as follows:
  • It can be developed for different filling ranges depending on your production capacity.
  • The filling nozzles on the filling nozzles can be developed in different sizes depending on demand.
  • Optionally, a mechanical position inductor counter can be added. These features and options are subject to a fee
  • < br>

CYD-S2-5000 - Liquid Filling Machine - 1000-5000ml - Other Details

  • If different optional features are added to the standard produced machine, the delivery time of the product will be between 5-20 days.
  • Renas Makina is packaged to be sent to points far from the production center.
  • The machine you want to buy can be sent at an affordable price with the cargo we have contracted with as Renas Makina. If your organization already has a contracted cargo company, the shipment process can also be provided with that cargo company.
  • A 1-year warranty is given against factory defects with the assurance of Renas Makina.
