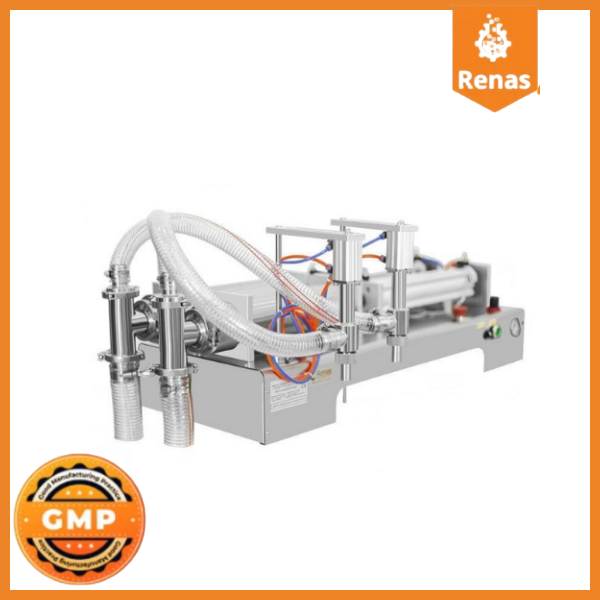

CYD-S2-2500 Double Nozzle Liquid Filling Line

CYD-S2-2500 Double Nozzle Liquid Filling Line

Technical Specifications of CYD-S2-2500 - 300-2500ml Liquid Filling Machine

Model CYD-S2-2500
Operating Range 300 – 2500 ml
Capacity 10 – 50 Filling / Minute
Filling Accuracy ±%1
Input Voltage 220V AC
Input Current 1A
Power Consumption 10W
Air Pressure 0,4 – 0,6 MPa (4 – 6 Bar)
Dimensions 115 * 49,5 * 44 cm
Weight 20 kg
How it works Pedal or Automatic
Materyal Stainless steel

General Features of CYD-S2-2500 - 300-2500ml Liquid Filling Machine

  1. It can be used to fill all low and medium viscosity products between 300 ml – 2500 ml.
  2. It is more hygienic, faster and more sensitive than old methods. It helps you establish a more professional working system.
  3. Because it has double nozzles, it helps you fill two liquid products at the same time. If you wish, you can fill two different products in different weights at the same time.
  4. Flanged ferrule system enables easier disassembly and assembly. In this way, you can easily handle the maintenance and cleaning of the machine.
  5. The materials at the points in contact with the product are made of anti-bacterial silicone material. Thus, it provides a hygienic working environment that complies with GMP conditions.
  6. Thanks to the sensitive dosing arm, you can work with a single machine in different filling ranges with minimum loss.
  7. CYD-S2-2500 double nozzle liquid filling machine has an emergency button. Thus, in situations that threaten occupational safety, you can stop the machine from operating by pressing the emergency button. Therefore, the machine complies with the occupational safety law no. 6331.
  8. It can work in both automatic and manual modes. The pedal switch required for manual mode is sent to you free of charge with the product.
  9. CYD-S2-2500 double nozzle liquid filling machine has an anti-drip nozzle system. Thanks to this system, contamination of the bottles is prevented and weight loss is prevented.
  10. The product has a suction piston. Thus, it can perform precise dosing even in high grammages.
  11. Having an internal conditioner prevents factors that may occur in the air installation and damage the pneumatic system of the machine.
  12. The body of the machine is made of stainless steel.
  13. The electrical system is protected against all kinds of electrical hazards thanks to the grounding in its chassis.
  14. It is produced to be suitable for filling dozens of liquid types such as fruit juice, milk and oil.

Optional Features That Can Be Added to CYD-S2-2500 - 300-2500ml Liquid Filling Machine

In addition to the features of the CYD-S2-2500 double nozzle liquid filling machine, you can add different features to the machine according to your needs. The main features that can be added to the machine upon request are as follows:
  • The machine you want to purchase can be developed to be compatible with your production volume.
  • The filling nozzles on the machine nozzles can be added in different sizes depending on demand.
  • An optional mechanical position inductor counter can be added. These features and options are subject to a fee

CYD-S2-2500 - Liquid Filling Machine - 300-2500ml - Other Details

  • If you want additional features to be added to the structure of the machine you want to purchase, the product delivery time will be between 5-20 days.
  • The product you purchase is packaged securely so that it can travel long distances.
  • If you wish, you can purchase the product through our contracted cargo company and complete the shipping process at a more affordable price. If your institution already has a contracted cargo company, we can send the product with that cargo company if you wish.
  • Products are under a 1-year warranty against factory defects.
