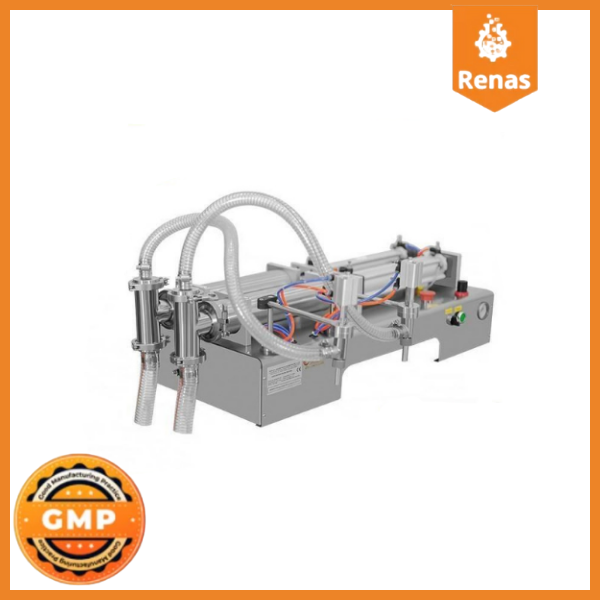

CYD-S2-1500 Semi-Automatic Liquid Filling Line

CYD-S2-1500 Semi-Automatic Liquid Filling Line

Technical Specifications of CYD-S1500 - 200-1500ml Liquid Filling Machine

Suction Pipe 304 Stainless
Suction Pneumatic Cylinder Honed Type
Nozzle Pneumatic Cylinder Square Cylinder
Chassis Stainless steel
sensors Airtac Taiwan Production
Pedal Plastic Pedal
Outer Box Cardboard
Gasket Group Silicon
Surfaces Stainless
Power Consumption 100 Watt
Energy 220V / 50HZ
Operating Range 200 -1500 ml
Capacity 10 – 15 Filling / Minute
Filling Accuracy ±%1
Input Voltage 220V AC
Input Current 1A
rollers Airtac
Air Pressure 0,4 – 0,6 MPa (4 – 6 Bar)
Dimensions 115 * 49,5 * 44 cm
Weight 25 KG
How it works Pedal or Automatic

General Features of CYD-S1500 - 200-1500ml Liquid Filling Machine

  1. It can be used in liquid filling processes of all low and medium viscosity products between 200 ml and 1500 ml.
  2. It provides filling processes with professional methods that require less labor compared to old methods.
  3. It has a flanged ferrule system. Thanks to this system, the connection points of the liquid filling machine can be easily removed and installed. This makes your job easier in both maintenance and cleaning work.
  4. All parts such as gaskets, o-rings and felts used in the construction of the machine are made of silicone with an anti-bacterial structure. In this way, hygiene conditions are ensured at the points in contact with the product.
  5. It has a high precision dosing arm. This minimizes the deviation rate in the filling intervals you set.
  6. Thanks to the emergency button, the machine can be stopped instantly in case of emergency. Thanks to this button, you will have a liquid filling machine that complies with the occupational safety law no. 6331.
  7. It can be connected to the warehouse or tank drains with a clamp and can be used for suction from sources such as canisters, buckets or jugs by immersion method.
  8. It can be operated in two different modes: manual and automatic. In automatic mode, there is little need for human intervention. It is suitable for use in mass production. In manual mode, the pedal switch that we send you free of charge with the product should be used.
  9. It has a nozzle system against dripping. In this way, both the deterioration of the grammage values ​​and the contamination of the filled bottles are prevented.
  10. Another feature that distinguishes the product from its competitors in the market is that it has a honed product suction piston. With the honed product suction piston, dosing can be done with high precision even in high-grammage liquid filling processes. On the other hand, the smoothness of the piston surface helps the seals have a longer life.
  11. CYD-S1500 single nozzle industrial liquid filling machine has an internal conditioner. With the help of the internal conditioner, extra protection is provided against conditions such as water and rust that may occur in the air installation and damage the pneumatic system of the machine.
  12. It can be used in filling processes of different types of liquids such as fruit juice, water, turnip, low viscosity shampoo, liquid soap, milk, oil, mineral oil, syrup.
  13. The body of the machine is made of stainless steel.
  14. Grounding on the machine chassis is extremely useful against electrical hazards.
  15. Thanks to the electro-pneumatic system, dosing is done with higher precision and filling waste is prevented.

CYD-S1500 - Optional Features That Can Be Added to 200-1500ml Liquid Filling Machine

Apart from the features of the CYD-S1500 single nozzle industrial liquid filling machine, you can request us to add different features to the machine in line with your needs. We can list the main optional features that can be added to the machine as follows:
  • Can be produced with sensor triggering.
  • Optionally, a mechanical position inductor counter can be added. These features and options are subject to a fee

CYD-S1500 - Liquid Filling Machine - 200-1500ml - Other Details

  • If additional features are requested, the delivery of the machine may take 5-20 days.
  • It is packaged appropriately when sent to points where distances are long.
  • Thanks to the cargo company that Renas Makina has a contract with, you can transport the product more cheaply than usual. If you already have a contracted cargo company, the product can be sent to you by that cargo.
  • Offered with a 1-year warranty against manufacturing defects.

Materials Used in CYD-S 1500 200-1500ml Liquid Filling Machine

  • All places where the product to be filled touches, the outer surface and the protection sheet are made of 304 SS stainless steel. Piston and drawn pipe protection apparatus are made of aluminum material.
  • Airtac Brand oil-free piston brand is used as pneumatic equipment.
