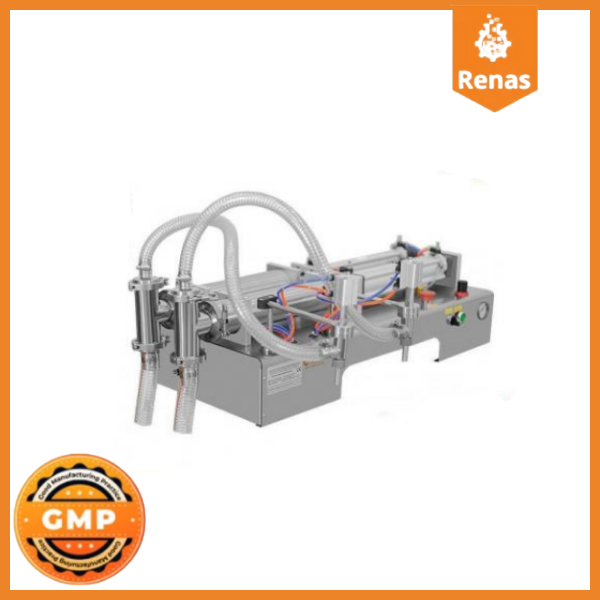

CYD-S2-1000 Industrial Liquid Filling Line Machine

CYD-S2-1000 Industrial Liquid Filling Line

Technical Specifications of CYD-S2-1000 - 100-1000ml Liquid Filling Machine

ModelCYD-S2-1000
Operating Range100 – 1000 ml
Capacity10 – 50 Filling / Minute
Filling Accuracy±%1
Input Voltage220V AC
Input Current1A
Power Consumption20W
Air Pressure0,4 – 0,6 MPa (4 – 6 Bar)
Dimensions115 * 49,5 * 44 cm
Weight55 kg
How it worksPedal or Automatic

Materiel

Stainless steel
Energy220V / 50HZ

General Features of CYD-S2-1000 - 100-1000ml Liquid Filling Machine

  1. Can fill all low and medium viscosity products between 100 – 1000 ml.
  2. It is a more hygienic, faster and more sensitive machine than the old methods. Therefore, the fillings made with this machine are much more professional and suitable for industrial production.
  3. It has all the features in the CYD-S series. In addition, its biggest difference from the CYD-S series is that it allows you to fill two products at the same time with its double nozzle. You can fill two different products in two different weights at the same time.
  4. The flanged ferrule system at the connection points allows the machine to be easily disassembled and cleaned quickly.
  5. All materials such as gaskets and felts at the points that come into contact with the product while the machine is filling are made of anti-bacterial silicone material. In this way, you will establish a system that meets hygiene conditions (GMP conditions).
  6. It has a sensitive dosing arm. In this way, you can perform filling operations at different filling intervals with minimum deviation.
  7. It has an emergency button. Thanks to this button, the machine can be stopped in emergency situations regardless of the position of the machine. In this way, you will fulfill the requirements of the Labor Law No. 6331.
  8. There are two different working methods. One of these working methods is automatic. If you wish, you can also use the filling machine in manual mode thanks to the pedal provided free of charge.
  9. CYD-S2-100 double nozzle industrial liquid filling machine has an anti-drip nozzle system. Thanks to this system, no dripping occurs after filling is completed. In this way, you can prevent grammage losses that may occur.
  10. The honed product has a suction piston. Thanks to the suction piston, it fills with high precision even in high-grammage product fillings. Thanks to the slide valve system at the air inlet, air can be cut off from the system when the operation is completed with the machine without the need for an additional valve.
  11. The body of the machine and other metal parts are made of stainless steel.
  12. The machine is protected against electrical hazards thanks to the grounding in the machine chassis.
  13. Having an electro-pneumatic system provides an advantage in preventing weight loss by making precise dosing.
  14. It can be used in the filling processes of many liquid products such as fruit juice, water, turnip, low viscosity shampoo, liquid soap, milk, oil, mineral oil, syrup.

Optional Features That Can Be Added to CYD-S2-1000 - 100-1000ml Liquid Filling Machine

In addition to the features of the CYD-S2-100 double nozzle industrial liquid filling machine, you can add the different features you need to the machine. The main optional features in question are as follows:
  • An optional mechanical position inductor counter can be added. These features and options are subject to a fee.
  • It can be developed for different filling ranges depending on your production capacity.
  • The filling nozzles on the filling nozzles can be developed in different sizes depending on demand.

CYD-S2-1000 - Liquid Filling Machine - 100-1000ml - Other Details

  • If different optional features are added to the standard produced machine, the delivery time of the product will be between 5-20 days.
  • Renas Makina is packaged to be sent to points far from the production center.
  • The machine you want to buy can be sent at an affordable price with the cargo we have contracted with as Renas Makina. If your organization already has a contracted cargo company, the shipment process can also be provided with that cargo company.
  • 1 year warranty is given against factory defects with the assurance of Renas Makina.

CYD-S21000 - Materials Used in 100-1000ml Liquid Filling Machine

  • All places where the product to be filled touches, the outer surface and the protection sheet are made of 304 SS stainless steel. Piston and drawn pipe protection apparatus are made of aluminum material.
  • Airtac Brand oil-free piston brand is used as pneumatic equipment. .
