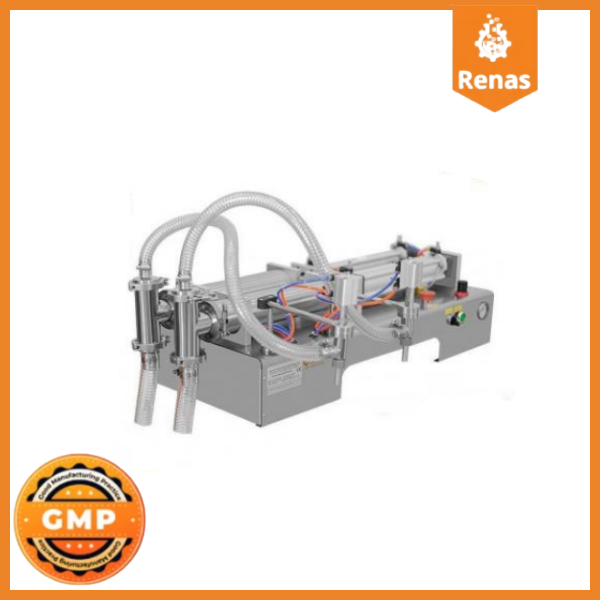

CYD-S1000 Semi-Automatic Liquid Filling Machine

CYD-S1000 Semi-Automatic Liquid Filling Machine

Technical Specifications of CYD-S1000 - 100-1000ml Liquid Filling Machine

ExampleSYD-S1000
Operation Range100 -1000ml
Capacity10 – 30 Filling/Minute
Filling Accuracy±%1
Input Voltage220V AC
Input Current1A
Power Consumption1A
Air Pressure0,4 – 0,6 MPa (4 – 6 Bar)
Dimensions115*49,5*44 cm
Weight20 kilo
Mode of OperationMode of OperationPedal or Automatic
MaterialStainless Steel
Energy220V / 50HZ
Suction Pipe304 Stainless
Suction Pneumatic CylinderDNC Type Thick Wall, Honed Type
Nozzle Pneumatic CylinderLess Risk of Pencil Piston Leakage
ChassisStainless Steel
SensorsAirtac Taiwan Production
Pedal MaterialPedal Plastic
Outer Box MaterialOuter Box MaterialCardboard
Conta GrubuSilicone

COD- Y2U500 - Fully Automatic Desktop Intensive Liquid Filling with 2 Nozzles

  1. It can fill all low and medium viscosity products between 100 ml – 1000 ml. The machine is a volumetric filling machine working with pneumatic system.It is a more hygienic, faster and more sensitive machine compared to traditional methods. Therefore, the fillings made with this machine are much more professional and suitable for industrial production.
  2. It is a more hygienic, faster and more sensitive machine compared to traditional methods. Therefore, the fillings made with this machine are much more professional and suitable for industrial production.
  3. The CYD-S1000 semi-automatic liquid filling machine has a flanged ferrule system at the connection points, allowing the machine to be easily disassembled and cleaned quickly.
  4. The production of all materials such as gaskets and seals at the points that come into contact with the product during liquid filling is made of anti-bacterial silicone material. Thus, you have established a system that meets hygiene requirements (GMP conditions).0.5 mm pitch range precision dosing arm allows to work with a single machine in many filling ranges with minimum drift rate. Unless the dosing setting is changed, it continues to operate at the same size.
  5. 0,5 mm hatfe aralıklı hassas dozajlama kolu sayesinde tek makina ile birçok dolum aralığında minimum şaşma oranı ile çalışabilmeye olanak sağlar. Dozajlama ayarı değiştirilmediği müddetçe aynı ölçüde çalışmaya devam eder.
  6. The emergency button of the CYD-S1000 semi-automatic liquid filling machine allows the machine to be brought to a safe position in case of emergency, regardless of the position of the machine. Thus, you have a form of production in accordance with the occupational safety law numbered 6331. It does not require extra cost to make it compliant with the law in question.
  7. It can be connected to the tank or tank drains with a clamp and can be suctioned by immersion method from sources such as drums, buckets or buckets. It does not require extra effort to bring the product to the mouth of the machine. This helps you save time.
  8. You can operate the CYD-S1000 semi-automatic liquid filling machine in two different ways according to your production speed and format. You can either operate the machine in automatic mode with timer, or you can operate it in manual mode with the pedal supplied free of charge with the machine.
  9. The nozzle system has a system that prevents dripping. In this way, you will not have a dripping problem after the filling is completed. As a result, both your filled bottles are not contaminated and you do not experience weight loss due to dripping.
  10. Unlike other similar products, it has a honed product suction piston. This piston allows dosing with high precision even at high weights and minimises filling wastage. On the other hand, since the piston surface is smooth, the piston seals have a longer life compared to their counterparts.
  11. The internal conditioner in the machine system provides protection against factors such as water and rust that may occur in the air installation and damage the pneumatic system of the machine. Thanks to the slide valve on the air inlet of the machine, you can cut off the air from the system when you are done with the machine without the need for a different valve.
  12. Having an electro pneumatic system provides the advantage of preventing weight wastage by precise dosing.
  13. The earthing in the chassis of the machine protects the machine against electrical hazards that may occur in the body of the machine.
  14. Many liquids can be filled with CYD-S1000 semi-automatic liquid filling machine. Among the liquid types in question; fruit juice, water, turnip, low viscosity shampoo, liquid soap, milk, liquid oil, mineral oil, syrup and many other liquids.

Optional Features that can be added to CYD-S1000 - 100-1000ml Liquid Filling Machine

In addition to the features of the CYD-S1000 semi-automatic liquid filling machine, you can add different features you need to the machine. The main optional features are as follows:
  • The sensor of the machine can be produced as triggered
  • Filling nozzles in filling nozzles can be produced in different sizes according to the need.
  • Optional mechanical position inductor counter can be added. This feature and options are subject to charge

CYD-S1000 - Liquid Filling Machine - 100-1000ml - Other Details

  • For non-standard productions, product delivery varies between 5-20 days.
  • The machine is packaged in a way that can be easily shipped to long distances.
  • The machine you purchased can be delivered to your address at an affordable price with our contracted courier. If you wish, shipment can be made with the cargo company you have an agreement with.
  • The machine is guaranteed for 1 year against manufacturing defects.

Materials Used in CYD-S1000 - 100-1000ml Liquid Filling Machine

  • All places where the product to be filled touches, the outer surface and the protection sheet are made of 304 SS stainless steel. Piston and drawn pipe protection apparatus are made of aluminum material.
  • Airtac Brand oil-free piston brand is used as pneumatic equipment. .
