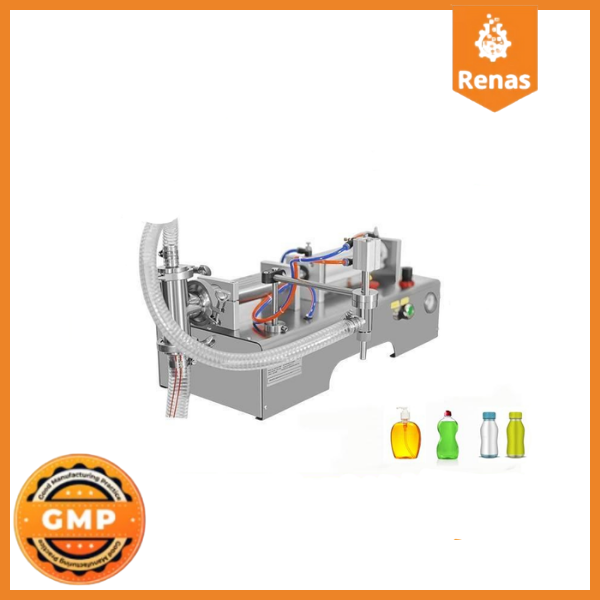

CYD-S100 - Semi-Automatic Single Nozzle Liquid Filling Machine

CYD-S100 - Semi-Automatic Single Nozzle Liquid Filling Machine

CYD-S100 - Semi-Automatic Single Nozzle Liquid Filling Machine

CYD-S100; Technical Specifications of 10-100ml Liquid Filling Machine
Model CYD-S100
Operating Range 10-100 ml
Capacity 10 – 30 Filling/Minute
Filling Accuracy ±%1
Input Voltage 220V AC
Input Current 1A
Power Consumption

10W
Air Pressure 0,4 – 0,6 MPa (4 – 6 Bar)
Dimensions 115 * 49,5 * 44 cm
Weight 27 kg
How it works Pedal or Automatic
Materiel Stainless steel
Energy 220V / 50HZ
Suction Pipe 304 Stainless
Suction Pneumatic Cylinder DNC Type Thick Wall, Honed Type
Nozzle Pneumatic Cylinder square cylinder
Chassis Stainless steel
sensors Airtac Taiwan Production
Pedal Material Plastic Pedal
Outer Box Material Cardboard
Gasket Group Silicon

General Features of CYD-S100 - 10-100ml Liquid Filling Machine

  1. It can fill all low and medium viscosity products between 10 ml – 100 ml.
  2. The flanged ferrule system at the connection points of the CYD-S100 semi-automatic single nozzle liquid filling machine allows the machine to be easily disassembled and cleaned quickly.
  3. All materials such as gaskets and felts at the points that come into contact with the product during liquid filling are made of anti-bacterial silicone material. In this way, you will establish a system that meets hygiene conditions (GMP conditions).
  4. Thanks to its precise dosing arm with 0.5 mm pitch gap, it allows working with a single machine in many filling ranges with minimum deviation rate. It continues to work at the same level unless the dosing setting is changed.
  5. The emergency button of the CYD-S100 semi-automatic single nozzle liquid filling machine allows the machine to be placed in a safe position in case of emergency, regardless of the position of the machine. In this way, you will have a production method that complies with the occupational safety law no. 6331. It does not require extra costs to make it compliant with the law in question.
  6. It can be connected to warehouse or tank drains with a clamp and can be used for suction from sources such as jerry cans, buckets or jugs by immersion method. It does not require extra effort to bring the product into the mouth of the machine. This helps you save time.
  7. You can operate the CYD-S100 semi-automatic single nozzle liquid filling machine in two different ways depending on your production speed and format. If you wish, you can operate the machine in automatic mode with a timer, or you can operate it in manual mode with the pedal provided free of charge with the machine.
  8. The nozzle system has a drip prevention system. In this way, you will not experience dripping problems after filling is completed. As a result, your bottles will not get dirty and you will not experience weight loss due to dripping.
  9. Unlike other similar products, the honed product has a suction piston. This piston allows dosing with high precision even at high weights and minimizes filling waste. On the other hand, since the piston surface is smooth, piston seals have a longer life compared to their counterparts.
  10. The internal conditioner in the machine system provides protection against factors such as water and rust that may occur in the air installation and damage the pneumatic system of the machine. Thanks to the slide valve located at the air inlet of the machine, you can cut off the air from the system when you are finished using the machine, without the need for a different valve.
  11. Having an electro-pneumatic system provides an advantage in preventing weight wastage by making precise dosing.
  12. Grounding on the chassis of the machine protects the machine against electrical hazards that may occur on the body of the machine.
  13. Many liquids can be filled with the CYD-S100 semi-automatic single nozzle liquid filling machine. Among the liquid types in question; There are many liquids such as fruit juice, water, turnip, low viscosity shampoo, liquid soap, milk, oil, mineral oil and syrup.
  14. The pistons used in the machines are AIRTAC-Taiwan production and are of higher quality and more efficient than the OEM type pistons used in similar machines.

CYD-S100 - Liquid Filling Machine 10-100ml - Other Details

  • For non-standard productions, product delivery varies between 5-20 days.
  • The machine is packaged in a way that can be easily shipped long distances.
  • The machine you purchased can be delivered to your address at an affordable price by our contracted courier. If you wish, shipment can be made with the cargo company you have an agreement with.
  • The machine is guaranteed for 1 year against manufacturing defects.
  • Optionally, a mechanical position inductor counter can be added. These features and options are subject to a fee.

CYD-S100 - 10-100ml Materials Used in Liquid Filling Machine

  • All places where the product to be filled touches, the outer surface and the protection sheet are made of 304 SS stainless steel. Piston and drawn pipe protection apparatus are made of aluminum material.
  • As pneumatic equipment, Airtac Brand oil-free piston brand is used.
