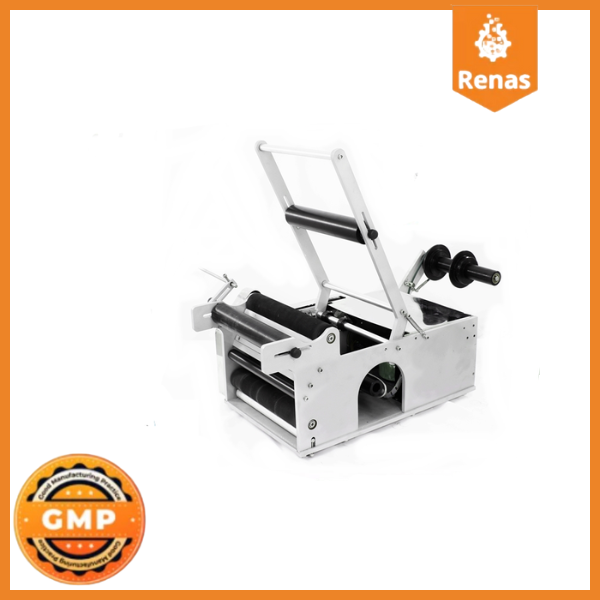

CM-75AL Cylindrical Labeling Machine

CM-75AL Cylindrical Labeling Machine

Technical Specifications of CM-75AL - 30-240mm Labeling Machine

Model CM-75 BUY
Sensibility Less than ± 3 mm
Capacity 25-50 pieces / minute (varies depending on label length and user’s dexterity)
Maximum Bottle Diameter 30-240mm
Label Width 50-230mm
Label Length 30-200mm
Voltage 220V 50Hz
Engine Power 45Watt
Maximum Coil Diameter 200mm
Skittle Diameter 76mm
Weight 28kg
Dimensions 75*45*65cm
Body Material Aluminum
Origin PRC

General Features of CM-75AL- 30-240mm Labeling Machine

  1. CM-75AL is controlled by a control card with an intelligent processor. It is suitable for long-term operation and consecutive shift production.
  2. All moving parts of the machine are driven by a single brake hybrid motor, which has a longer life than standard asynchronous motors.
  3. Changing the label or switching to another label is extremely easy.
  4. It can work seamlessly on different label types.
  5. It is suitable for labeling all round and cylindrical products such as glass bottles, pet bottles, glass jars, tins, serrated tins. It also works without any problems in difficult processes such as full winding.
  6. It has been developed to work on all label sizes between 30 mm – 130 mm. It can label all cylindrical objects up to 130 mm in diameter.

Optional Features That Can Be Added to CM-75AL - 30-240mm Labeling Machine

  • For your transparent labels, we can install an ultrasonic transparent labeling sensor on the machine, so our machine can work on transparent labels without any problems. The price of this option is 500 USD.
  • We can add an integrated date coding unit to the machine, so that information such as date, batch number, and weight can be coded without the need for additional labor. The date coding feature can be used up to 3 lines and 36 characters in total.

CM-75AL - Labeling Machine - 30-240mm - Other Related Details

  • Our machine is generally available in stock. If you request one or both of the transparent sensor or date coding options, the delivery time can generally be extended by around 1 week.
  • It is packaged appropriately for long distance shipments.
  • Thanks to the cargo company we have an agreement with, the transportation of the product is done at an affordable price. If your company has an agreement with a cargo company, you can also choose to use that cargo.
  • RENAS MACHINE and Automation systems are under warranty for 1 year against factory-exit defects.
  • Our machine has CE and LVD certificates; we can also provide CO, ATR, and EURO 1 certificates upon your request.
