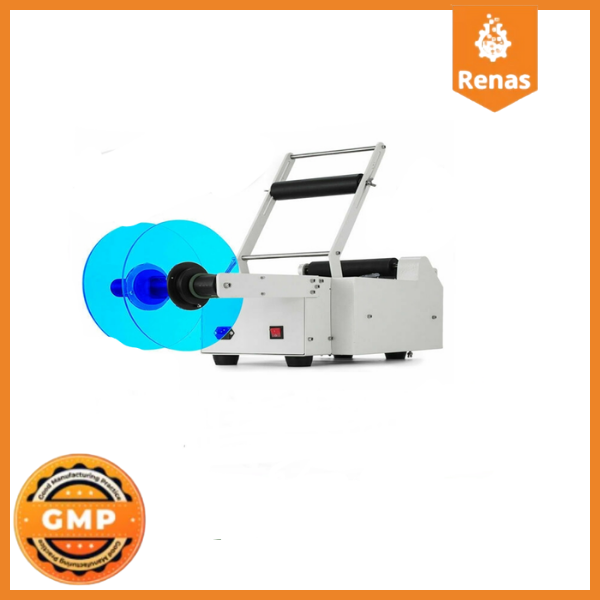

CM-50AL-S Semi-Automatic Transparent Cylindrical Labeling Machine

CM-50AL-S Semi-Automatic Transparent Cylindrical Labeling Machine

Technical Specifications of CM-50AL-S 26-150mm Labeling Machine

Model CM-50AL-S
Sensitivity and Sensor Less than ±3mm-Ultrasonic Sensor
Capacity 25-50 pieces / minute
Maximum Bottle Diameter 20-120mm
Label Width 26-150 mm
Label Length 25-200mm
Voltage 220V 50Hz
Engine Power 45Watt
Maximum Coil Diameter 260mm
Skittle Diameter 75mm
Weight 28kg
Dimensions 65*45*65 cm
Body Material Stainless steel
Origin PRC

General Features of CM-50AL-S 26-150mm Labeling Machine

  1. CM-50AL-S is controlled by a control card with an intelligent processor. It is suitable for long-term operation and consecutive shift production.
  2. All moving parts of the machine are driven by a single brake hybrid motor, which has a longer life than standard asynchronous motors.
  3. Changing the label or switching to another label is extremely easy.
  4. It can work seamlessly on different label types.
  5. It is suitable for labeling all round and cylindrical products such as glass bottles, pet bottles, glass jars, tins, serrated tins. It also works without any problems in difficult processes such as full winding.
  6. It has been developed to work on all label sizes between 26 mm – 150 mm. It can label all cylindrical objects up to 130 mm in diameter.

Optional Features That Can Be Added to the CM-50AL-S 26-150mm Labeling Machine

In addition to the features of the CM-50P semi-automatic cylindrical labeling machine, we can add different features to the machine that you need.
  • For your transparent labels, we can install an ultrasonic transparent labeling sensor on the machine, so our machine can work on transparent labels without any problems. The price of this option is 500 USD.
  • We can add an integrated date coding unit to the machine, so that information such as date, batch number, weight can be coded without the need for additional labor. The date coding feature can be used up to 3 lines and 36 characters in total.

CM-50AL-S Labeling Machine - 26-150mm - Other Related Details

  • Our machine is generally available in stock. If you request one or both of the transparent sensor or date coding options, the delivery time can generally be extended by around 1 week.
  • It is packaged appropriately for long distance shipments.
  • Thanks to the cargo company we have an agreement with, the transportation of the product is done at an affordable price. If your company has an agreement with a cargo company, you can also choose to use that cargo.
  • RENAS MACHINE and Automation systems are under warranty for 1 year against factory-exit defects.
  • Our machine has CE and LVD certificates. We can also provide CO, ATR, EURO 1 certificates upon your request.
