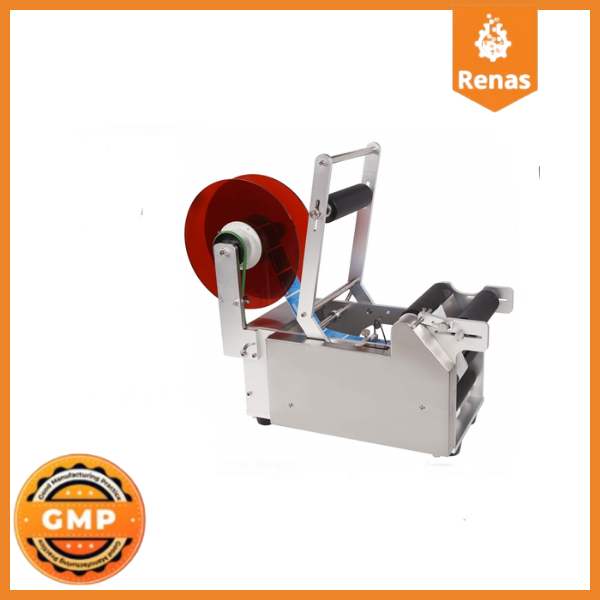

CM-50AL Cylindrical Labeling Machine

CM-50AL Cylindrical Labeling Machine

General Features of CM-50AL- 26-150mm Labeling Machine

ModelCM-50AL
AccuracyLess than ± 3 mm
Capacity25-50 pieces/minute (Depends on label length and user’s hand speed)
Maximum Bottle Diameter20-150 mm
Label Width26-130 mm
Label Length25-290 mm
Voltage220V 50Hz
Motor Power45 Watt
Maximum Reel Diameter260 mm
Core Diameter18-50 mm
Weight28 kg
Dimensions65 x 45 x 65 cm
Body MaterialStainless Steel + Aluminum
OriginPRC

General Features of CM-50AL- 26-150mm Labeling Machine

  1. The CM-50AL is controlled by a smart processor control card. It is suitable for long-term operation and continuous shift production.
  2. All moving parts of the machine are driven by a single brake hybrid motor, which has a longer lifespan compared to standard asynchronous motors.
  3. Label changes or switching to another label are extremely easy.
  4. It can work seamlessly with different types of labels.
  5. It is suitable for labeling all round and cylindrical products such as glass bottles, PET bottles, glass jars, cans, and ribbed cans. It also works smoothly in challenging operations like full wraps.
  6. It is designed to operate with all label sizes between 26 mm and 150 mm. It can label all cylindrical objects up to 130 mm in diameter.

CM-50AL - Labeling Machine - 26-150mm - Other Related Details

  • Our machines are generally available in stock. If you request either or both of the options for a transparent sensor or date coding, the overall lead time may extend to approximately 1 week.
  • The machine is packaged suitable for long-distance shipping.
  • Thanks to our contracted shipping company, the transportation of the product is done at a reasonable price. If your company has an agreement with a shipping company, you can also prefer to use that carrier.
  • The machine is covered by a 1-year warranty from RENAS MACHINERY and Automation Systems against factory defects.
  • Our machine has CE and LVD certifications, and we can also provide CO, ATR, and EURO 1 certifications upon your request.

CM-50AL - Labeling Machine - 26-150mm - Other Related Details

  • For transparent labels, we can install an ultrasonic transparent labeling sensor on the machine, allowing our machine to work seamlessly with transparent labels. The price for this option is 500 USD.
  • We can add an integrated date coding unit to the machine, enabling the coding of information such as date, batch number, and weight without the need for additional labor. The date coding feature can be used for up to 3 lines and a total of 36 characters.
