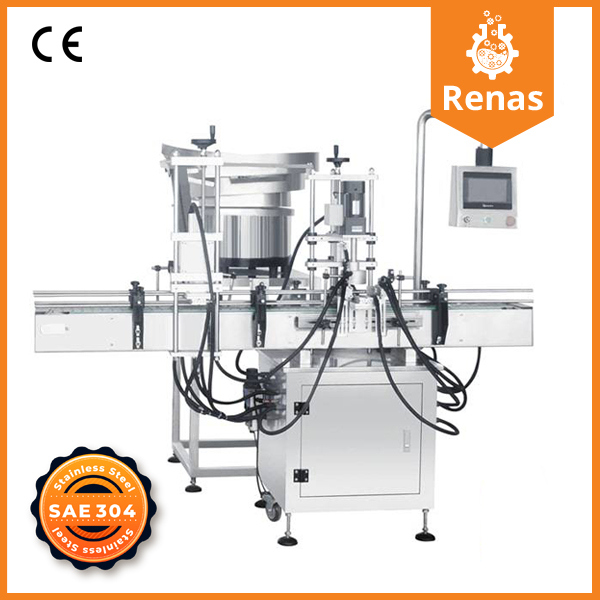

ROK-V Series Cap Crimping Machine

ROK-V Series

Techinical Features and Prices

Features / Series ROK-V4A ROK-V1AF
Operation Range
25 mm - 50 mm
15 mm - 130 mm
Conveyor Width
150 mm
-150 mm
Conveyor Length
180 cm
180 cm
Operating Voltage
220V / 50 Hz
220V / 50 Hz
Cover Types
Timing, Spray, Beak, Screw
Types of screw caps

General Features of ROK-V Series Fully Automatic Capping Machine

  • Fully automatic cap tightening machine has been developed to close all flat or cylindrical surface or screw caps with little corners.
  • The tightening motors of the machines are among the A++ class motors with high induction torque. Compared to standard asynchronous motors, they both last longer and heat up slower. On the other hand, it takes up very little space. It does not require frequent maintenance. Although each of the motors is 60W, it can produce the same power as 250-watt motors. In addition, the speed settings of the right and left motors of the ROK-V4A Fully Automatic Screw Cap Tightening Machine can be made separately. Thanks to this feature, it also provides smooth closing on sensitive covers.
  • If you wish, the lid tightening mechanism we use can be produced with torque adjustment for your sensitive lids. The cover mold of our machine can be produced according to your needs, such as chestnut, polyamide, polyethylene, aluminum, brass, etc. We can produce from many materials such as
  • The standard conveyor belt is made of hard pallet. It is much longer lasting compared to PVC tapes. On the other hand, in case of damage to the conveyor belt, it is not necessary to replace the entire belt; It is sufficient to replace only the damaged part. In this respect, you can have it repaired with small expenses.
  • It is 100% domestic production. All of the design, drawing, cutting, bending, processing and automation stages of the machine are done in our own facilities. The fact that all these production stages of the machine are carried out within the body of Renas Makina allows adding or removing the additional features you want to the machine.
  • Made of SUS 304 stainless steel and aluminum. In this respect, it is a machine that meets hygiene standards.
  • The conveyor of the ROK-V Series fully automatic screw cap tightening machine is developed with speed adjustment as standard in all models. This feature of the machine provides convenience especially in productions that require precision.
  • Our machines can work on all covers between 15 mm – 130 mm. However, if you request, we can produce a cap tightening machine that will work in different working widths for your caps with different dimensions.
  • Its performance and efficiency are extremely high. On average, up to 50-55 closures can be made per minute. The capacity may decrease by 10% in the caps with high screw pitch.

Optional Features of ROK-V Series Fully Automatic Capping Machine

  • Depending on your production capacity and format, you can add certain features to the machine.
  • If you wish, you can request a stainless conveyor belt. We recommend you to use this feature, especially in extremely acidic productions.
  • With the optional touchscreen operator panel, you can personalize your machine more and have more control over the working settings.
  • Among the features you can add optionally, there is a bottle direction inverter for bottles of different shapes. This feature, which allows you to turn the bottles in one direction, is offered to you free of charge if you request it.

ROK-V Series Capping Machine - Other Details

  • The delivery time of the machines for which additional (optional) features are requested is in the range of 5-20 days.
  • Packed for long-distance shipments.
  • Thanks to the contracted courier company, the product is transported at an affordable price. If your company has a contracted cargo company, you can choose to use that cargo as well.
  • 1 year warranty is provided against factory defects.
